Element diggs:TrenchWallEvent
Namespace http://diggsml.org/schemas/3
Annotations

An object containing properties describing a time or location related
event that occurs during construction of a trial pit or trench wall.

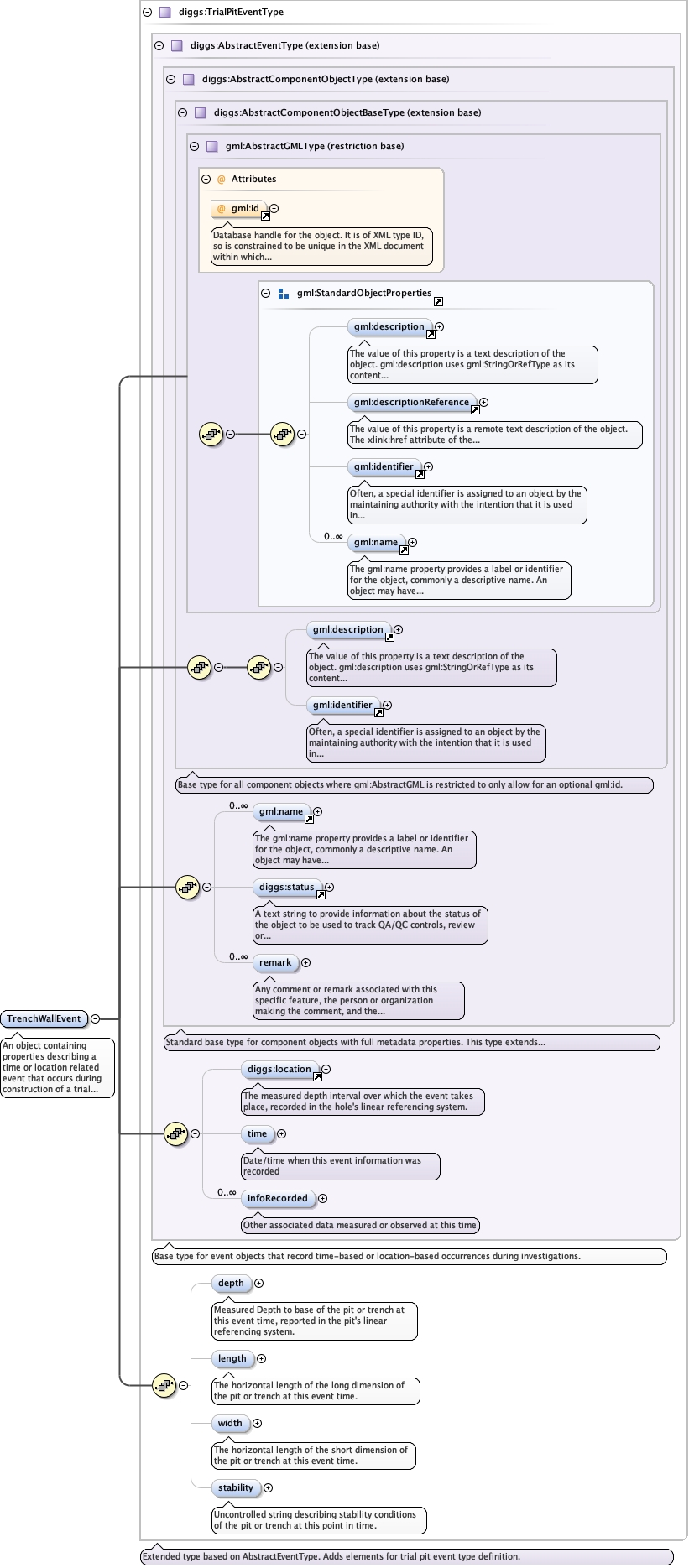

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecordedAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventTypeCore_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_depthCore_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_lengthCore_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_widthCore_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType_stabilityCore_xsd_Complex_Type_diggs_TrialPitEventType.tmp#TrialPitEventType
Type diggs:TrialPitEventType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:depth, diggs:infoRecorded, diggs:length, diggs:location, diggs:remark, diggs:stability, diggs:status, diggs:time, diggs:width, gml:description, gml:identifier, gml:name
Instance

<diggs:TrenchWallEvent gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:location>
  <diggs:time>{0,1}</diggs:time>
  <diggs:infoRecorded>{0,unbounded}</diggs:infoRecorded>
  <diggs:depth howDetermined="" qualifier="" uom="">{0,1}</diggs:depth>
  <diggs:length howDetermined="" qualifier="" uom="">{0,1}</diggs:length>
  <diggs:width howDetermined="" qualifier="" uom="">{0,1}</diggs:width>
  <diggs:stability>{0,1}</diggs:stability>
</diggs:TrenchWallEvent>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtSamplingFeatures.xsd
