Namespace http://diggsml.org/schemas/3
Annotations
The Chalk Crushing Value is determined by using the chalk impact crushing
test, which measures the rate at which a sample of chalk lumps crushes under impacts
from a freefalling rammer. The chalk crushing value can be used, together with the
saturation moisture content of the intact chalk lumps, to classify chalk in relation
to its behaviour as a freshly placed fill material. The test procedure is described
for a single sample of chalk lumps, but normal procedure should be to calculate the
mean value derived from six such tests on representative samples.

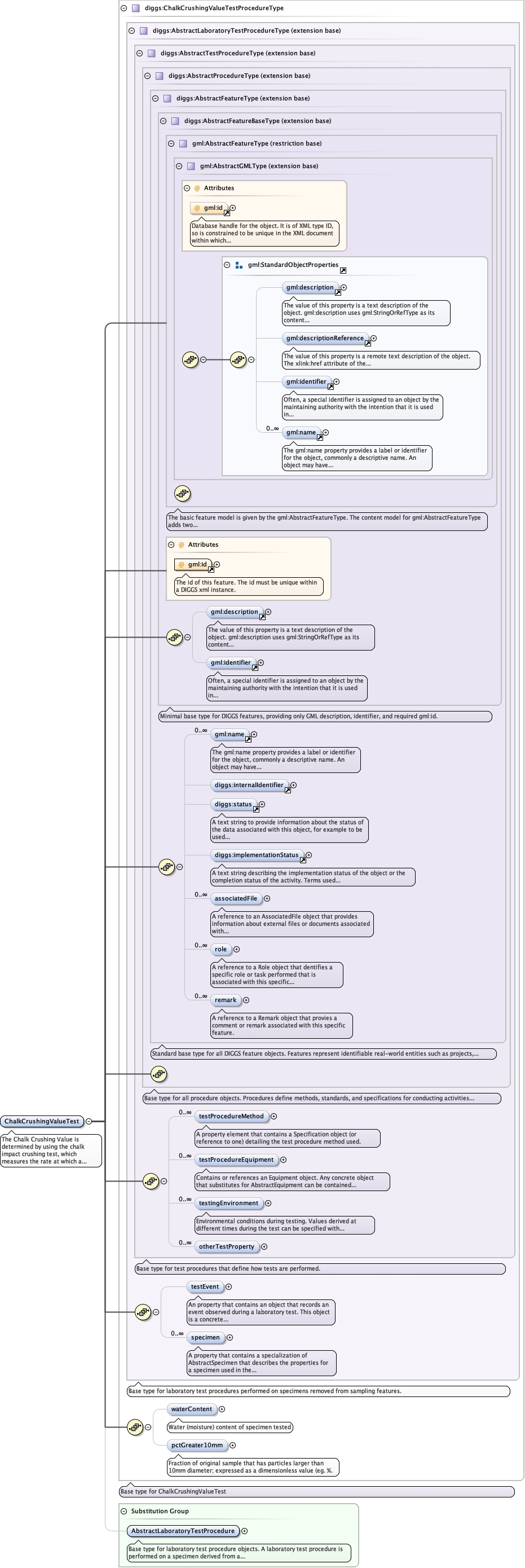

Diagram
Type diggs:ChalkCrushingValueTestProcedureType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:waterContent{0,1} ,
diggs:pctGreater10mm{0,1}
Children diggs:associatedFile diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:pctGreater10mm diggs:remark diggs:role diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs:waterContent gml:description gml:identifier gml:name
Instance
<diggs:ChalkCrushingValueTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs:waterContent howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterContent>
<diggs:pctGreater10mm howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:pctGreater10mm>
</diggs:ChalkCrushingValueTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/extended/ExtProcedures.xsd
