Element diggs_geo:WaterContentTest
Namespace http://diggsml.org/schemas/3/geotechnical
Annotations

An object that contains properties describing a water content test procedure. Water content or moisture content is the quantity of water contained in a
material, expressed as a ratio. Also referred to as moisture content, this is the
mass of water divided by the mass of the solids, expressed as a
percentage.

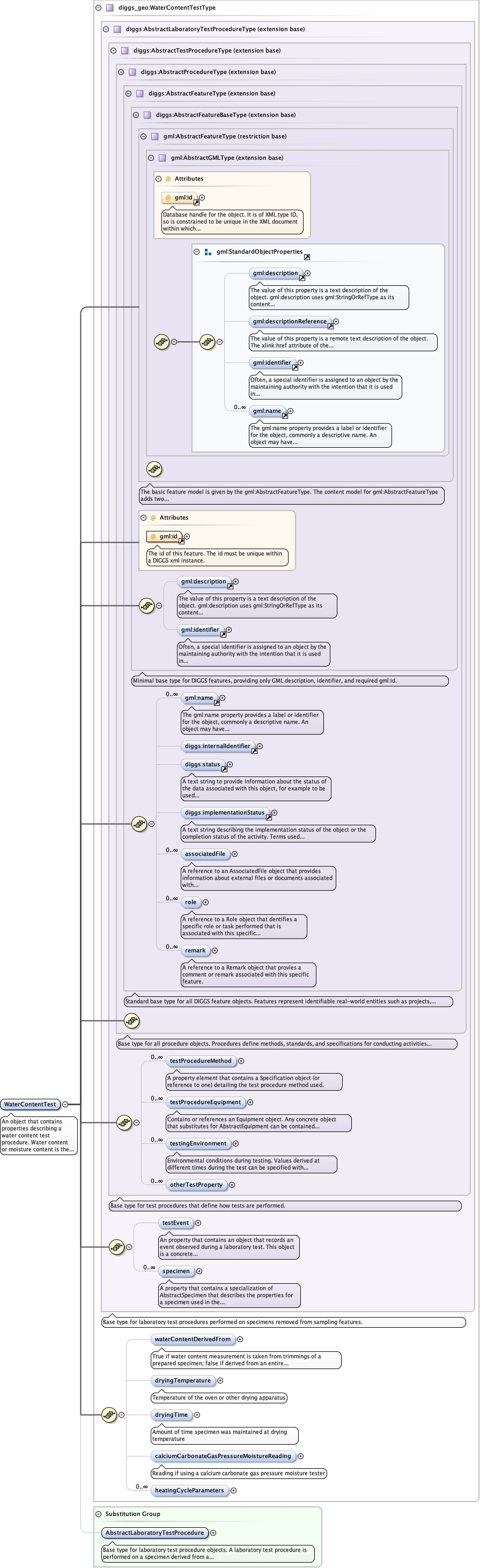

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractFeatureType.tmp#AbstractFeatureTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureBaseType.tmp#AbstractFeatureBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_internalIdentifier.tmp#internalIdentifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_implementationStatus.tmp#implementationStatusAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_associatedFileAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_roleAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractFeatureType.tmp#http___diggsml.org_schemas_3_AbstractFeatureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureType.tmp#AbstractProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureMethodAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testProcedureEquipmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_testingEnvironmentAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureType_otherTestPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractTestProcedureType.tmp#AbstractTestProcedureTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_testEventAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureType_specimenAbstractTypes_xsd_Complex_Type_diggs_AbstractLaboratoryTestProcedureType.tmp#AbstractLaboratoryTestProcedureTypeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestType_waterContentDerivedFromDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestType_dryingTemperatureDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestType_dryingTimeDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestType_calciumCarbonateGasPressureMoistureReadingDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestType_heatingCycleParametersDiggs_geo_deprecated_xsd_Complex_Type_diggs_geo_WaterContentTestType.tmp#http___diggsml.org_schemas_3_geotechnical_WaterContentTestTypeAbstractTypes_xsd_Element_diggs_AbstractLaboratoryTestProcedure.tmp#AbstractLaboratoryTestProcedure
Type diggs_geo:WaterContentTestType
Type hierarchy
Properties
content complex
abstract false
Substitution Group Affiliation
Model
Children diggs:associatedFile, diggs:implementationStatus, diggs:internalIdentifier, diggs:otherTestProperty, diggs:remark, diggs:role, diggs:specimen, diggs:status, diggs:testEvent, diggs:testProcedureEquipment, diggs:testProcedureMethod, diggs:testingEnvironment, diggs_geo:calciumCarbonateGasPressureMoistureReading, diggs_geo:dryingTemperature, diggs_geo:dryingTime, diggs_geo:heatingCycleParameters, diggs_geo:waterContentDerivedFrom, gml:description, gml:identifier, gml:name
Instance

<diggs_geo:WaterContentTest gml:id="" xmlns:diggs_geo="http://diggsml.org/schemas/3/geotechnical" xmlns:gml="http://www.opengis.net/gml/3.2" xmlns:diggs="http://diggsml.org/schemas/3">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:testProcedureMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureMethod>
  <diggs:testProcedureEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:testProcedureEquipment>
  <diggs:testingEnvironment>{0,unbounded}</diggs:testingEnvironment>
  <diggs:otherTestProperty>{0,unbounded}</diggs:otherTestProperty>
  <diggs:testEvent>{0,1}</diggs:testEvent>
  <diggs:specimen xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:specimen>
  <diggs_geo:waterContentDerivedFrom>{0,1}</diggs_geo:waterContentDerivedFrom>
  <diggs_geo:dryingTemperature howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:dryingTemperature>
  <diggs_geo:dryingTime howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:dryingTime>
  <diggs_geo:calciumCarbonateGasPressureMoistureReading howDetermined="" qualifier="" uom="">{0,1}</diggs_geo:calciumCarbonateGasPressureMoistureReading>
  <diggs_geo:heatingCycleParameters>{0,unbounded}</diggs_geo:heatingCycleParameters>
</diggs_geo:WaterContentTest>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/deprecated/Diggs_geo_deprecated.xsd
