Element diggs:SoundingEvent
Namespace http://diggsml.org/schemas/3
Annotations

An object that contains properties describing a location or time based
event that occurs during contstruction of a sounding sampling
feature.

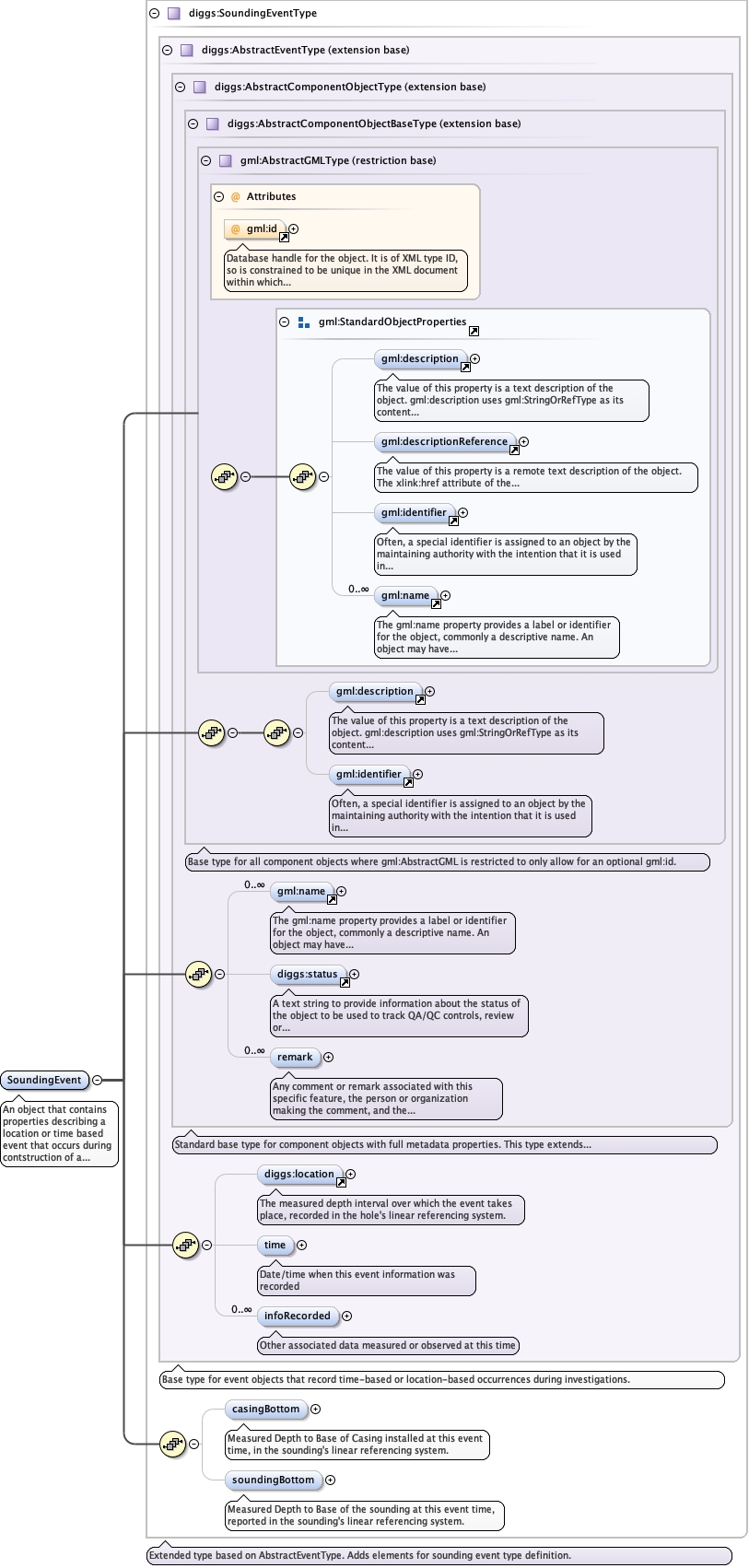

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_timeAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventType_infoRecordedAbstractTypes_xsd_Complex_Type_diggs_AbstractEventType.tmp#AbstractEventTypeCore_xsd_Complex_Type_diggs_SoundingEventType.tmp#SoundingEventType_casingBottomCore_xsd_Complex_Type_diggs_SoundingEventType.tmp#SoundingEventType_soundingBottomCore_xsd_Complex_Type_diggs_SoundingEventType.tmp#SoundingEventType
Type diggs:SoundingEventType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:casingBottom, diggs:infoRecorded, diggs:location, diggs:remark, diggs:soundingBottom, diggs:status, diggs:time, gml:description, gml:identifier, gml:name
Instance

<diggs:SoundingEvent gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:location>
  <diggs:time>{0,1}</diggs:time>
  <diggs:infoRecorded>{0,unbounded}</diggs:infoRecorded>
  <diggs:casingBottom xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:casingBottom>
  <diggs:soundingBottom xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:soundingBottom>
</diggs:SoundingEvent>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Core.xsd
