Element diggs:SampleDimensions
Namespace http://diggsml.org/schemas/3
Annotations

For solid soil or rock samples, contains properties on the sample
dimensions

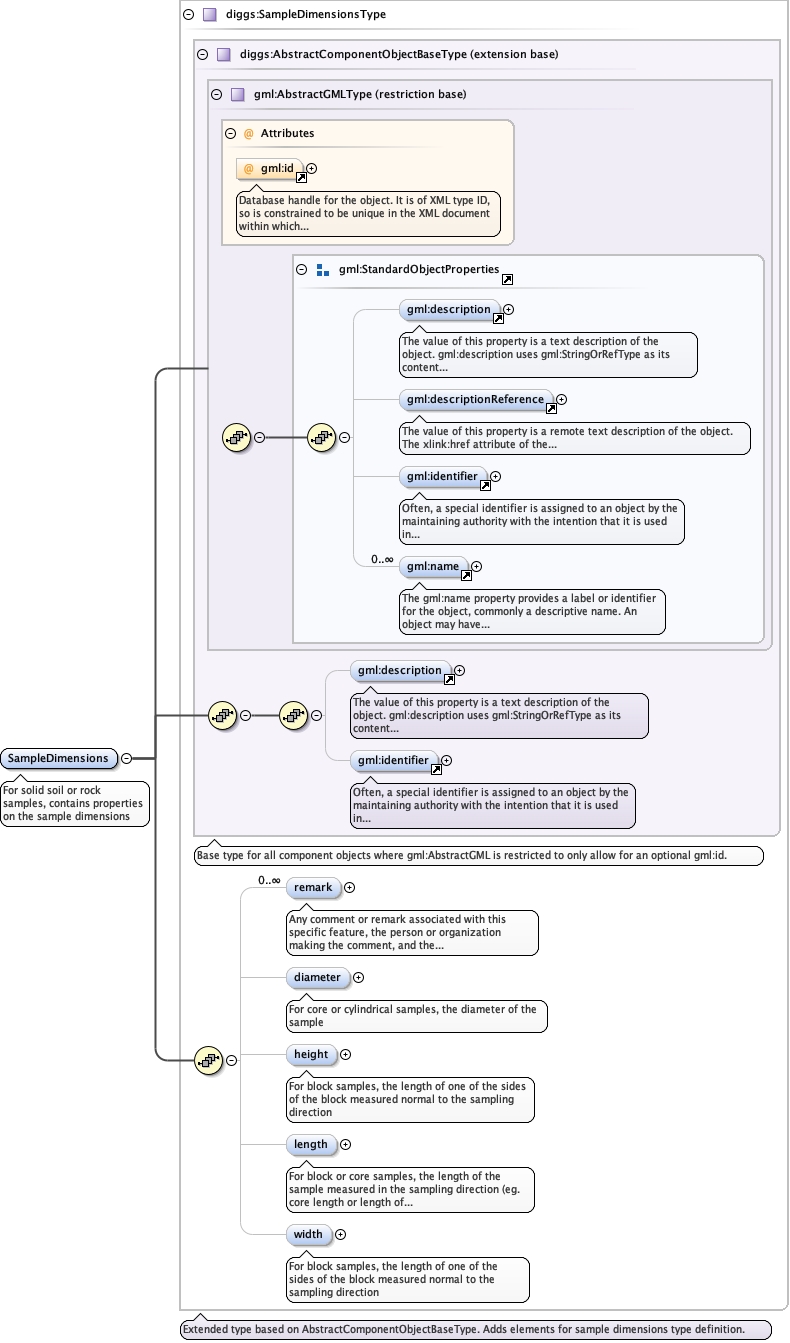

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType_remarkCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType_diameterCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType_heightCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType_lengthCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType_widthCore_xsd_Complex_Type_diggs_SampleDimensionsType.tmp#SampleDimensionsType
Type diggs:SampleDimensionsType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:diameter, diggs:height, diggs:length, diggs:remark, diggs:width, gml:description, gml:identifier
Instance

<diggs:SampleDimensions gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:diameter howDetermined="" qualifier="" uom="">{0,1}</diggs:diameter>
  <diggs:height howDetermined="" qualifier="" uom="">{0,1}</diggs:height>
  <diggs:length howDetermined="" qualifier="" uom="">{0,1}</diggs:length>
  <diggs:width howDetermined="" qualifier="" uom="">{0,1}</diggs:width>
</diggs:SampleDimensions>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Core.xsd
