Element diggs:DirectShearConsolidationLoadingIncrement
Namespace http://diggsml.org/schemas/3
Annotations

An object containing properties of a consolidation loading increment of a
direct shear test procedure.

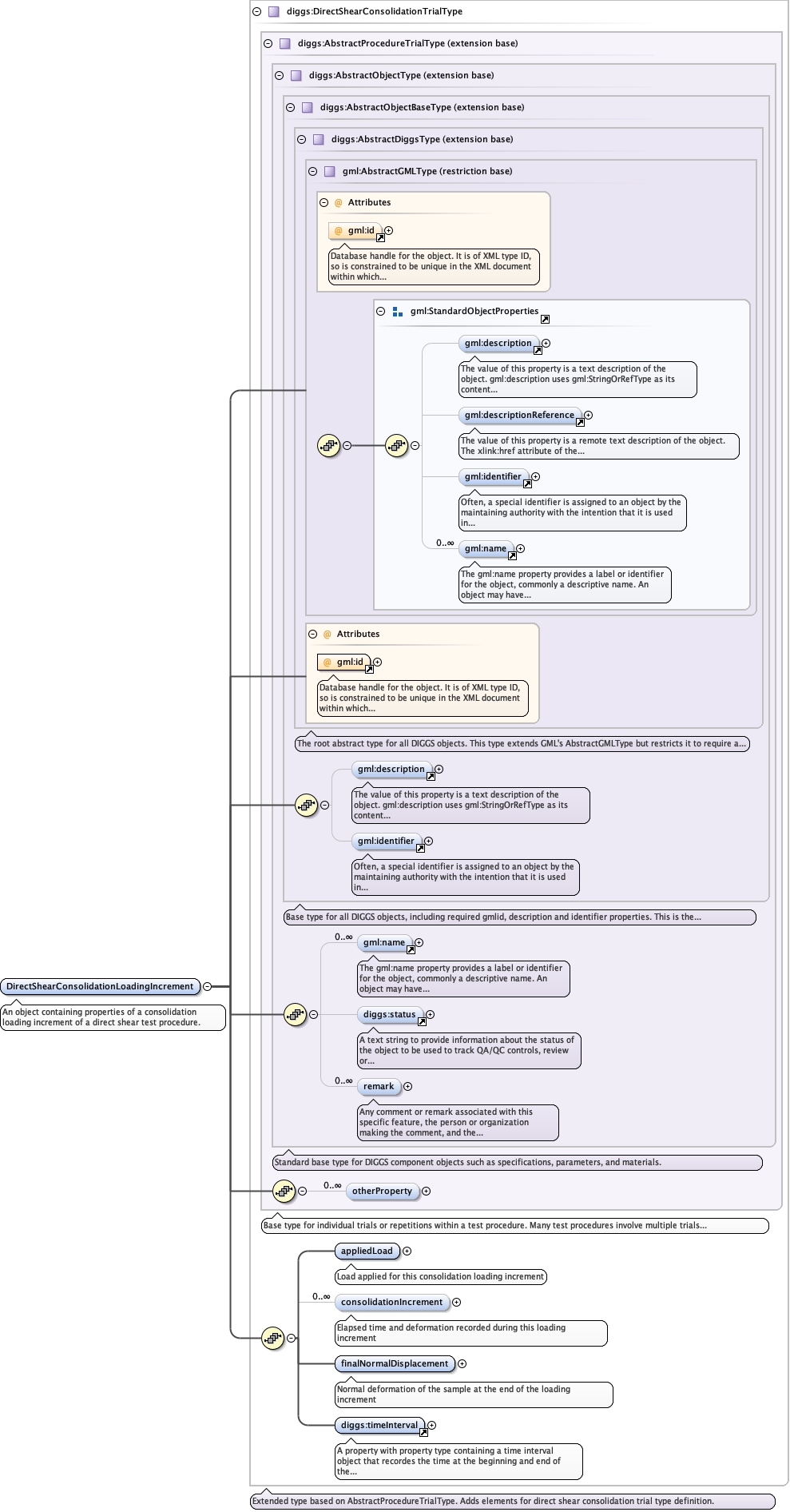

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialType_otherPropertyAbstractTypes_xsd_Complex_Type_diggs_AbstractProcedureTrialType.tmp#AbstractProcedureTrialTypeCoreProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#DirectShearConsolidationTrialType_appliedLoadCoreProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#DirectShearConsolidationTrialType_consolidationIncrementCoreProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#DirectShearConsolidationTrialType_finalNormalDisplacementCoreProcedures_xsd_Element_diggs_timeInterval.tmp#http___diggsml.org_schemas_3_timeIntervalCoreProcedures_xsd_Complex_Type_diggs_DirectShearConsolidationTrialType.tmp#DirectShearConsolidationTrialType
Type diggs:DirectShearConsolidationTrialType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:appliedLoad, diggs:consolidationIncrement, diggs:finalNormalDisplacement, diggs:otherProperty, diggs:remark, diggs:status, diggs:timeInterval, gml:description, gml:identifier, gml:name
Instance

<diggs:DirectShearConsolidationLoadingIncrement gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:otherProperty>{0,unbounded}</diggs:otherProperty>
  <diggs:appliedLoad howDetermined="" qualifier="" uom="">{1,1}</diggs:appliedLoad>
  <diggs:consolidationIncrement>{0,unbounded}</diggs:consolidationIncrement>
  <diggs:finalNormalDisplacement howDetermined="" qualifier="" uom="">{1,1}</diggs:finalNormalDisplacement>
  <diggs:timeInterval>{1,1}</diggs:timeInterval>
</diggs:DirectShearConsolidationLoadingIncrement>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/CoreProcedures.xsd
