Namespace http://diggsml.org/schemas/3
Annotations
An object describing a consolidation test procedure. This test is
performed to determine the magnitude and rate of volume decrease that a laterally
confined soil specimen undergoes when subjected to different vertical pressures.
From the measured data, the consolidation curve (pressure-void ratio relationship)
can be plotted. This data is useful in determining the compression index (slope of
virgin curve), the recompression index (slope of recompression curve) and the
preconsolidation pressure (or maximum past pressure) of the soil. In addition, the
data obtained can also be used to determine the coefficient of consolidation and the
coefficient of secondary compression of the soil.

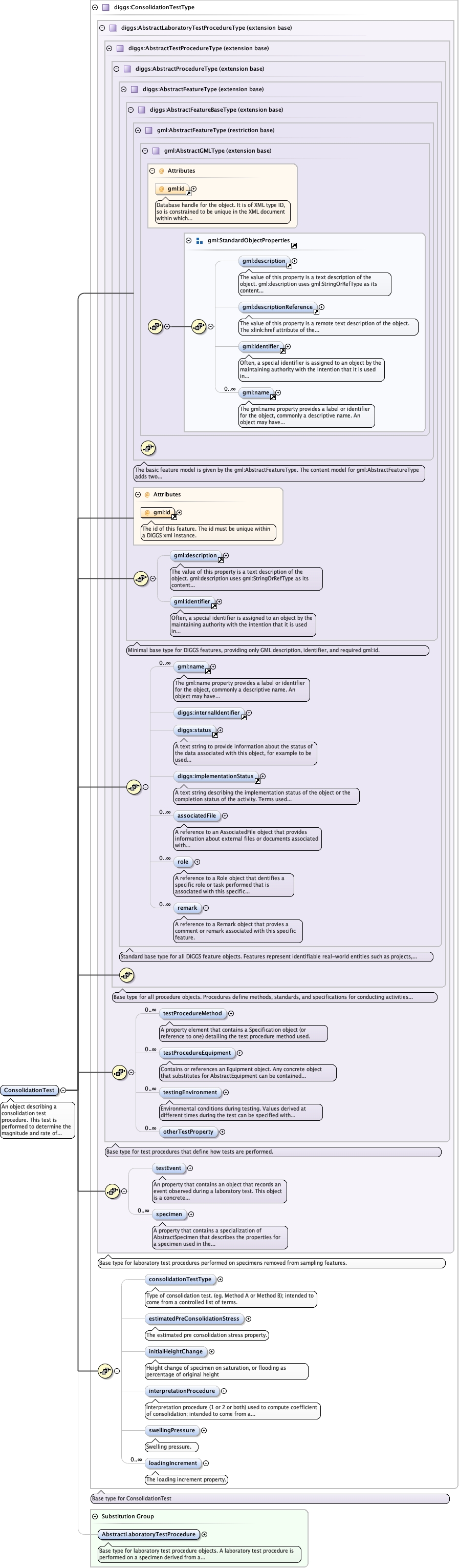

Diagram
Type diggs:ConsolidationTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:consolidationTestType{0,1} ,
diggs:estimatedPreConsolidationStress{0,1} ,
diggs:initialHeightChange{0,1} ,
diggs:interpretationProcedure{0,1} ,
diggs:swellingPressure{0,1} ,
diggs:loadingIncrement*
Children diggs:associatedFile diggs:consolidationTestType diggs:estimatedPreConsolidationStress diggs:implementationStatus diggs:initialHeightChange diggs:internalIdentifier diggs:interpretationProcedure diggs:loadingIncrement diggs:otherTestProperty diggs:remark diggs:role diggs:specimen diggs:status diggs:swellingPressure diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:ConsolidationTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs:consolidationTestType codeSpace= "" > {0,1} </diggs:consolidationTestType>
<diggs:estimatedPreConsolidationStress howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:estimatedPreConsolidationStress>
<diggs:initialHeightChange howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:initialHeightChange>
<diggs:interpretationProcedure codeSpace= "" > {0,1} </diggs:interpretationProcedure>
<diggs:swellingPressure howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:swellingPressure>
<diggs:loadingIncrement > {0,unbounded} </diggs:loadingIncrement>
</diggs:ConsolidationTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/CoreProcedures.xsd
