Namespace http://diggsml.org/schemas/3
Annotations
An object describing an Atterberg Limits test procedure. The Atterberg
limits are a basic measure of the nature of a fine-grained soil. Depending on the
water content of the soil, it may appear in four states: solid, semi-solid, plastic
and liquid. In each state the consistency and behavior of a soil is different and
thus so are its engineering properties. Thus, the boundary between each state can be
defined based on a change in the soil's behavior. The Atterberg limits can be used
to distinguish between silt and clay, and it can distinguish between different types
of silts and clays.

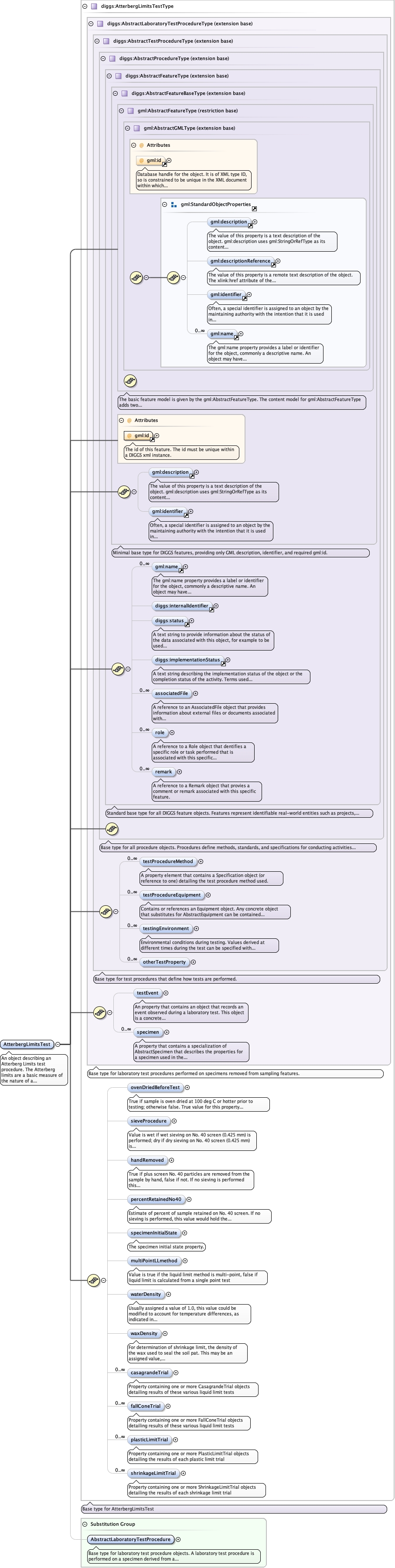

Diagram
Type diggs:AtterbergLimitsTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:ovenDriedBeforeTest{0,1} ,
diggs:sieveProcedure{0,1} ,
diggs:handRemoved{0,1} ,
diggs:percentRetainedNo40{0,1} ,
diggs:specimenInitialState{0,1} ,
diggs:multiPointLLmethod{0,1} ,
diggs:waterDensity{0,1} ,
diggs:waxDensity{0,1} ,
diggs:casagrandeTrial* ,
diggs:fallConeTrial* ,
diggs:plasticLimitTrial* ,
diggs:shrinkageLimitTrial*
Children diggs:associatedFile diggs:casagrandeTrial diggs:fallConeTrial diggs:handRemoved diggs:implementationStatus diggs:internalIdentifier diggs:multiPointLLmethod diggs:otherTestProperty diggs:ovenDriedBeforeTest diggs:percentRetainedNo40 diggs:plasticLimitTrial diggs:remark diggs:role diggs:shrinkageLimitTrial diggs:sieveProcedure diggs:specimen diggs:specimenInitialState diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs:waterDensity diggs:waxDensity gml:description gml:identifier gml:name
Instance
<diggs:AtterbergLimitsTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs:ovenDriedBeforeTest > {0,1} </diggs:ovenDriedBeforeTest>
<diggs:sieveProcedure > {0,1} </diggs:sieveProcedure>
<diggs:handRemoved > {0,1} </diggs:handRemoved>
<diggs:percentRetainedNo40 > {0,1} </diggs:percentRetainedNo40>
<diggs:specimenInitialState > {0,1} </diggs:specimenInitialState>
<diggs:multiPointLLmethod > {0,1} </diggs:multiPointLLmethod>
<diggs:waterDensity howDetermined= "" qualifier= "" waterTemperature= "" > {0,1} </diggs:waterDensity>
<diggs:waxDensity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waxDensity>
<diggs:casagrandeTrial > {0,unbounded} </diggs:casagrandeTrial>
<diggs:fallConeTrial > {0,unbounded} </diggs:fallConeTrial>
<diggs:plasticLimitTrial > {0,unbounded} </diggs:plasticLimitTrial>
<diggs:shrinkageLimitTrial > {0,unbounded} </diggs:shrinkageLimitTrial>
</diggs:AtterbergLimitsTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/CoreProcedures.xsd
