Element diggs:LocationUncertainty
Namespace http://diggsml.org/schemas/3
Annotations

Location uncetainty is intended to describe positional uncertainty associated with a geometry, not to alter or replace the geometry itself. Uncertainty values are expressed in the units of the geometry’s CRS and may be provided using axis-based or radial (horizontal/vertical) representations. Multiple representations may coexist and are considered alternative expressions of the same uncertainty.

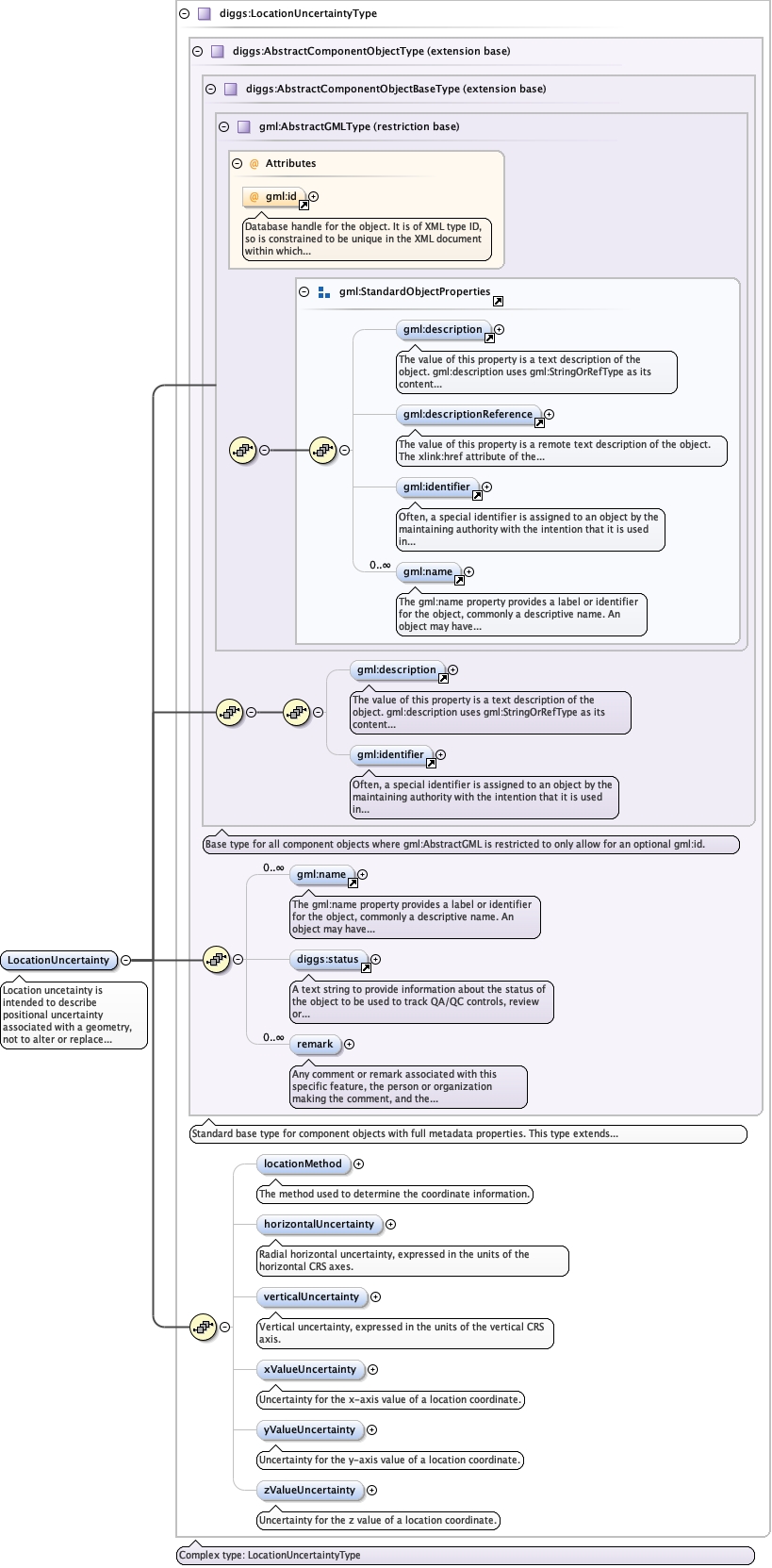

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectType.tmp#AbstractComponentObjectTypeCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_locationMethodCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_horizontalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_verticalUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_xValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_yValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType_zValueUncertaintyCommon_xsd_Complex_Type_diggs_LocationUncertaintyType.tmp#LocationUncertaintyType
Type diggs:LocationUncertaintyType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:horizontalUncertainty, diggs:locationMethod, diggs:remark, diggs:status, diggs:verticalUncertainty, diggs:xValueUncertainty, diggs:yValueUncertainty, diggs:zValueUncertainty, gml:description, gml:identifier, gml:name
Instance

<diggs:LocationUncertainty gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:locationMethod>{0,1}</diggs:locationMethod>
  <diggs:horizontalUncertainty>{0,1}</diggs:horizontalUncertainty>
  <diggs:verticalUncertainty>{0,1}</diggs:verticalUncertainty>
  <diggs:xValueUncertainty>{0,1}</diggs:xValueUncertainty>
  <diggs:yValueUncertainty>{0,1}</diggs:yValueUncertainty>
  <diggs:zValueUncertainty>{0,1}</diggs:zValueUncertainty>
</diggs:LocationUncertainty>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Schema location file:/Users/dponti/GitHub/diggs-schema/core/Common.xsd
