Element gml:TimeCS
Namespace http://www.opengis.net/gml/3.2
Annotations

gml:TimeCS is a one-dimensional coordinate system containing a time axis, used to describe the temporal position of a point in the specified time units from a specified time origin. A TimeCS shall have one gml:axis property element.

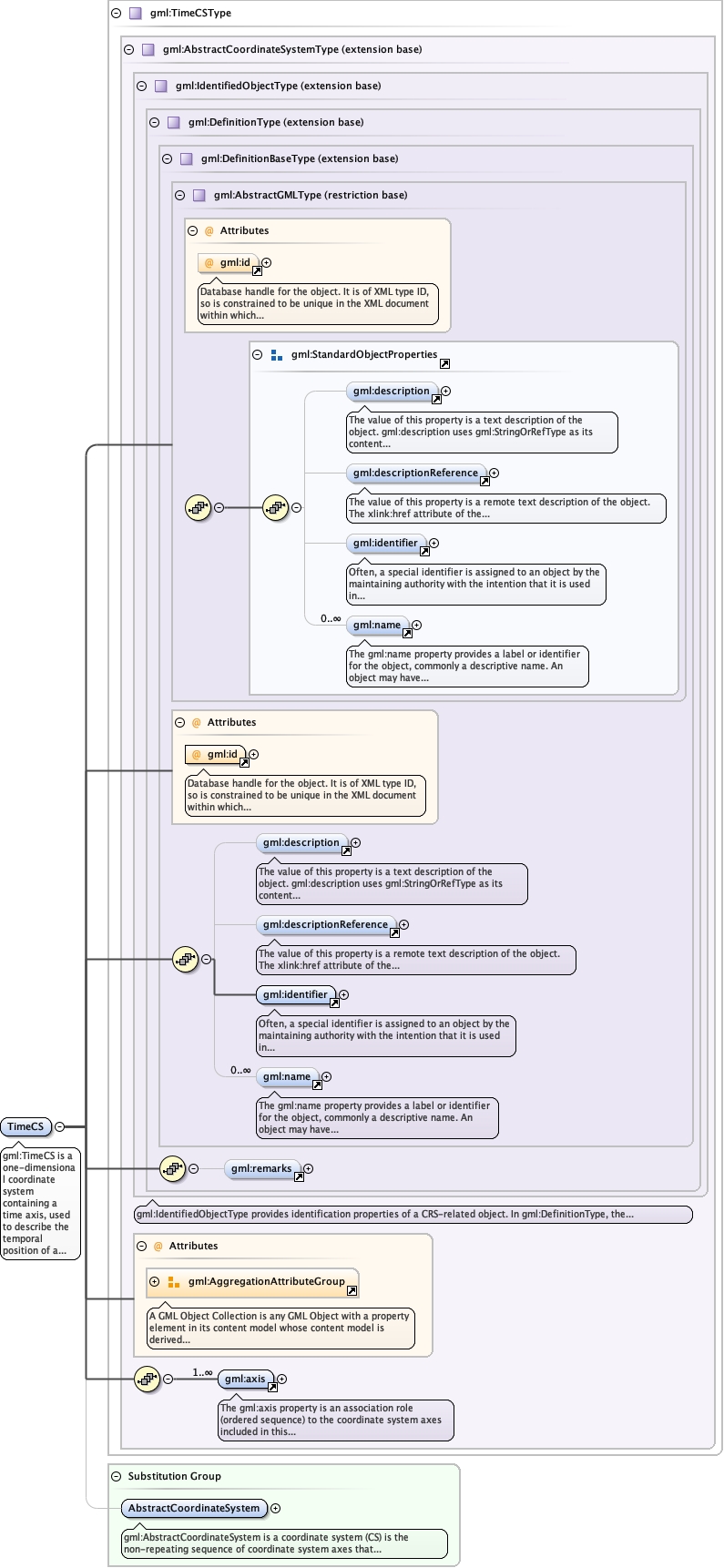

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionBaseType.tmp#DefinitionBaseTypegml3_2Profile_diggs_xsd_Element_gml_remarks.tmp#remarksgml3_2Profile_diggs_xsd_Complex_Type_gml_DefinitionType.tmp#DefinitionTypegml3_2Profile_diggs_xsd_Complex_Type_gml_IdentifiedObjectType.tmp#IdentifiedObjectTypegml3_2Profile_diggs_xsd_Attribute_Group_gml_AggregationAttributeGroup.tmp#AggregationAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_axis.tmp#axisgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractCoordinateSystemType.tmp#AbstractCoordinateSystemTypegml3_2Profile_diggs_xsd_Complex_Type_gml_TimeCSType.tmp#TimeCSTypegml3_2Profile_diggs_xsd_Element_gml_AbstractCoordinateSystem.tmp#AbstractCoordinateSystem
Type gml:TimeCSType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Complex Type gml:TimeCSPropertyType
Model
Children gml:axis, gml:description, gml:descriptionReference, gml:identifier, gml:name, gml:remarks
Instance

<gml:TimeCS aggregationType="" gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:descriptionReference xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:descriptionReference>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:axis xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</gml:axis>
</gml:TimeCS>
Attributes
QName Type Use Annotation
aggregationType gml:AggregationType optional
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="TimeCS" type="gml:TimeCSType" substitutionGroup="gml:AbstractCoordinateSystem">
  <annotation>
    <documentation>gml:TimeCS is a one-dimensional coordinate system containing a time axis, used to describe the temporal position of a point in the specified time units from a specified time origin. A TimeCS shall have one gml:axis property element.</documentation>
  </annotation>
</element>
