Schema documentation for component gml:TemporalDatum

Showing:

Annotations

Attributes

Diagrams

Instances

Model

Properties

Source

Used by

Element gml:TemporalDatum

Namespace

http://www.opengis.net/gml/3.2

Annotations

A gml:TemporalDatum defines the origin of a Temporal Reference System. This type omits the "anchorDefinition" and "realizationEpoch" elements and adds the "origin" element with the dateTime type.

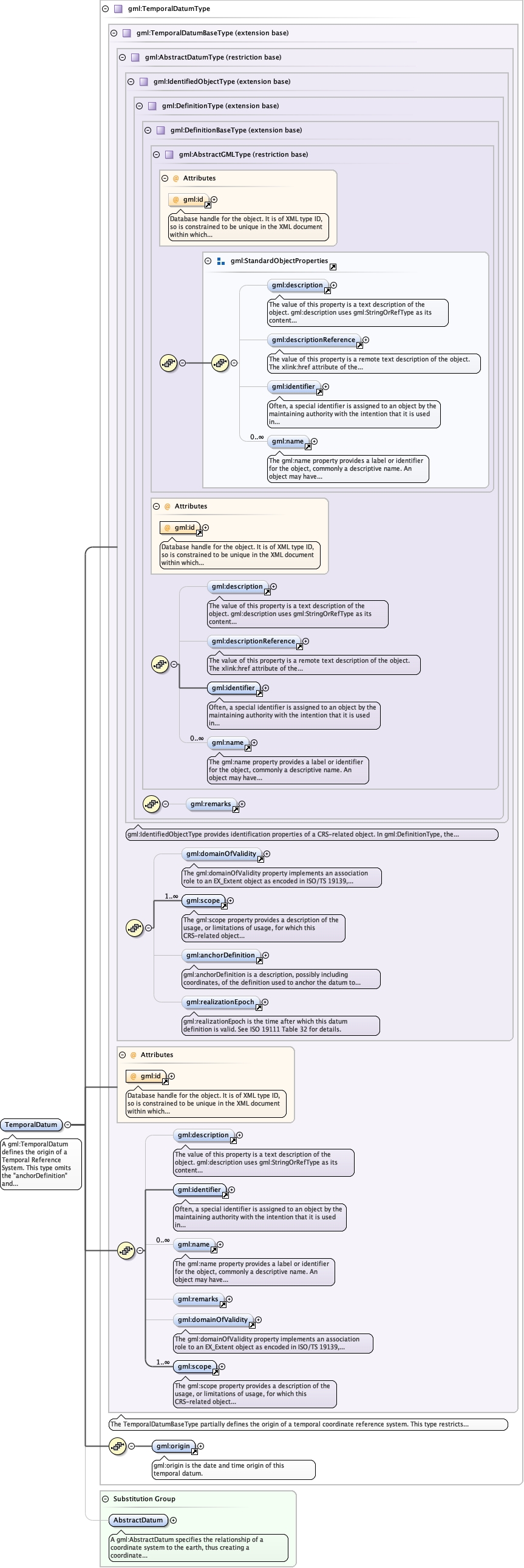

Diagram

Type

gml:TemporalDatumType

Type hierarchy

gml:AbstractGMLType
- gml:DefinitionBaseType
  - gml:DefinitionType
    - gml:IdentifiedObjectType
      - gml:AbstractDatumType

        gml:TemporalDatumBaseType

        gml:TemporalDatumType

Properties

content

complex

Substitution Group Affiliation

gml:AbstractDatum

Used by

Complex Type

gml:TemporalDatumPropertyType

Model

gml:description{0,1} , gml:identifier , gml:name* , gml:remarks{0,1} , gml:domainOfValidity{0,1} , gml:scope+ , gml:origin

Children

gml:description, gml:domainOfValidity, gml:identifier, gml:name, gml:origin, gml:remarks, gml:scope

Instance

<gml:TemporalDatum gml:id="" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{1,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <gml:remarks>{0,1}</gml:remarks>
  <gml:domainOfValidity xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:domainOfValidity>
  <gml:scope>{1,unbounded}</gml:scope>
  <gml:origin>{1,1}</gml:origin>
</gml:TemporalDatum>

Attributes

QName

Type

Use

Annotation

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

Source

<element name="TemporalDatum" type="gml:TemporalDatumType" substitutionGroup="gml:AbstractDatum">
  <annotation>
    <documentation>A gml:TemporalDatum defines the origin of a Temporal Reference System. This type omits the "anchorDefinition" and "realizationEpoch" elements and adds the "origin" element with the dateTime type.</documentation>
  </annotation>
</element>
