Element diggs:OffsetParameters
Namespace http://diggsml.org/schemas/3
Annotations

Defines parameters for lateral offset from a linear element centerline.

When included in an LRMethod, this indicates the method supports 2D
positioning with both distance along and perpendicular offset coordinates.

Common applications:
- Side-scan sonar swaths from geophysical tracklines
- Offset soil sampling from survey transects
- Parallel monitoring points along pipelines
- Trial pit offset sampling

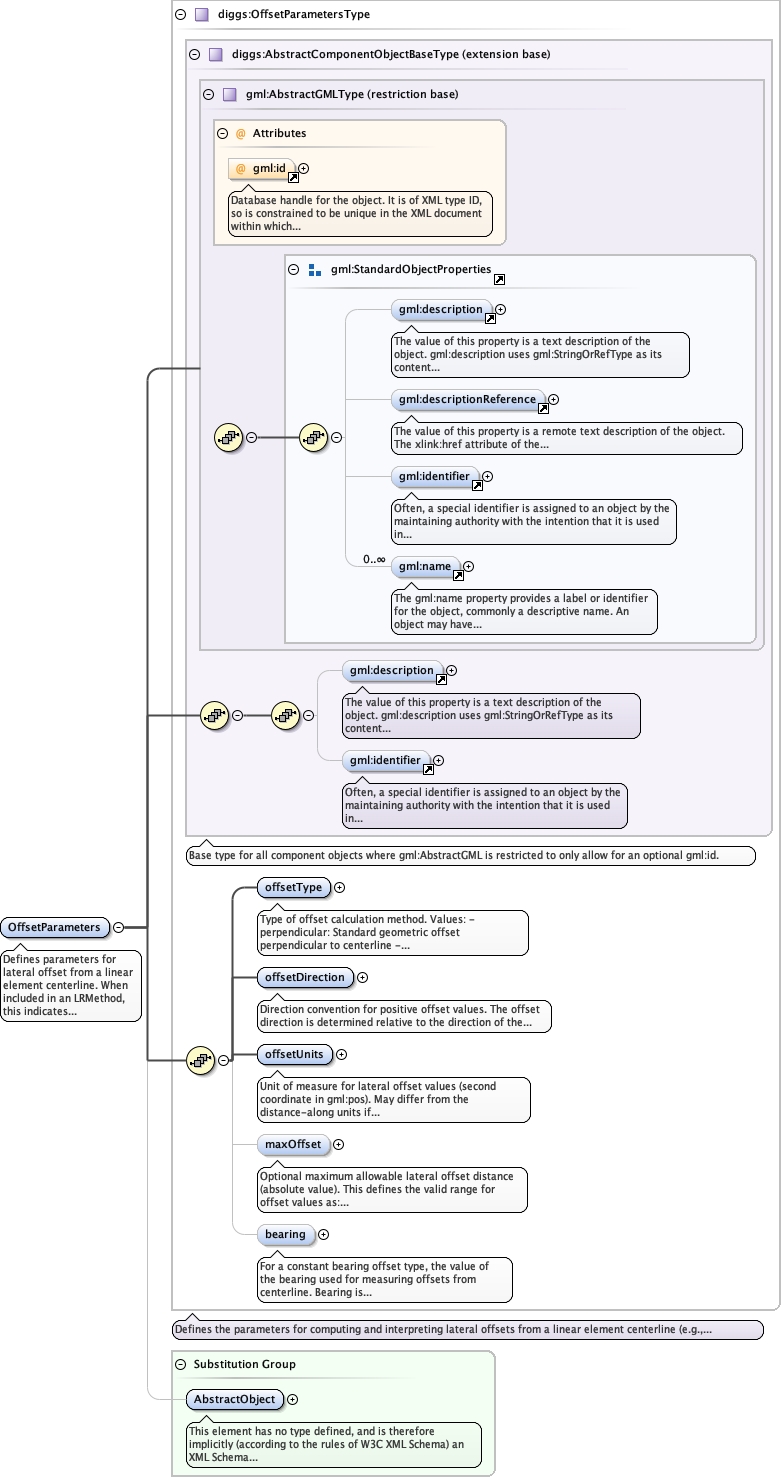

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetTypeLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetDirectionLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_offsetUnitsLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_maxOffsetLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersType_bearingLinearReferencing_xsd_Complex_Type_diggs_OffsetParametersType.tmp#OffsetParametersTypegml3_2Profile_diggs_xsd_Element_gml_AbstractObject.tmp#AbstractObject
Type diggs:OffsetParametersType
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children diggs:bearing, diggs:maxOffset, diggs:offsetDirection, diggs:offsetType, diggs:offsetUnits, gml:description, gml:identifier
Instance

<diggs:OffsetParameters gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:offsetType>{1,1}</diggs:offsetType>
  <diggs:offsetDirection>{1,1}</diggs:offsetDirection>
  <diggs:offsetUnits>{1,1}</diggs:offsetUnits>
  <diggs:maxOffset>{0,1}</diggs:maxOffset>
  <diggs:bearing howDetermined="" qualifier="" uom="">{0,1}</diggs:bearing>
</diggs:OffsetParameters>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="OffsetParameters" type="diggs:OffsetParametersType" substitutionGroup="gml:AbstractObject">
  <annotation>
    <documentation>Defines parameters for lateral offset from a linear element centerline. When included in an LRMethod, this indicates the method supports 2D positioning with both distance along and perpendicular offset coordinates. Common applications: - Side-scan sonar swaths from geophysical tracklines - Offset soil sampling from survey transects - Parallel monitoring points along pipelines - Trial pit offset sampling</documentation>
  </annotation>
</element>
