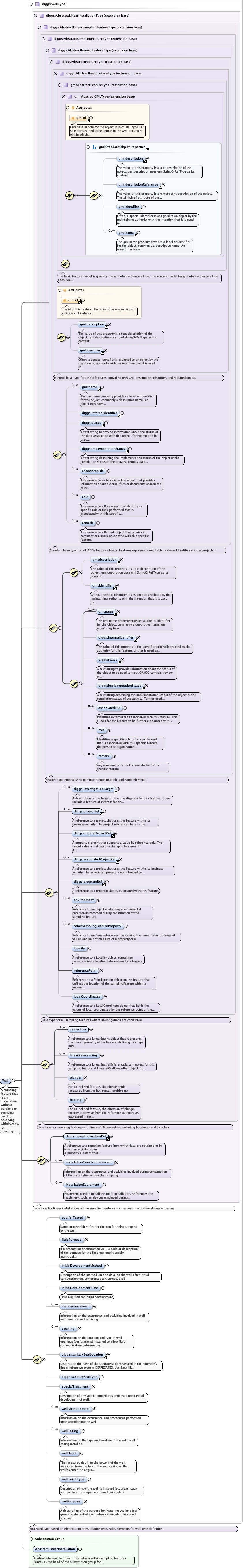

Schema documentation for component diggs:Well

A sampling feature that is an installation within a borehole or sounding, used for observing, withdrawing, or injecting fluids. Although wells are discrete sampling features in their own right, they are installed within boreholes or soundings, and must reference the parent borehole or sounding feature within the mandatory samplingFeatureRef property.

<diggs:Well gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{1,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:investigationTarget>{0,unbounded}</diggs:investigationTarget>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:projectRef>
  <diggs:originalProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:originalProjectRef>
  <diggs:associatedProjectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedProjectRef>
  <diggs:programRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programRef>
  <diggs:environment>{0,unbounded}</diggs:environment>
  <diggs:otherSamplingFeatureProperty>{0,unbounded}</diggs:otherSamplingFeatureProperty>
  <diggs:locality>{0,1}</diggs:locality>
  <diggs:referencePoint xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,1}</diggs:referencePoint>
  <diggs:localCoordinates>{0,1}</diggs:localCoordinates>
  <diggs:centerLine xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{1,unbounded}</diggs:centerLine>
  <diggs:linearReferencing>{0,unbounded}</diggs:linearReferencing>
  <diggs:plunge howDetermined="" qualifier="" uom="">{0,1}</diggs:plunge>
  <diggs:bearing howDetermined="" qualifier="" refAzimuth="" uom="">{0,1}</diggs:bearing>
  <diggs:samplingFeatureRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:samplingFeatureRef>
  <diggs:installationConstructionEvent>{0,unbounded}</diggs:installationConstructionEvent>
  <diggs:installationEquipment xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:installationEquipment>
  <diggs:aquiferTested codeSpace="">{0,1}</diggs:aquiferTested>
  <diggs:fluidPurpose codeSpace="">{0,1}</diggs:fluidPurpose>
  <diggs:initialDevelopmentMethod xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:initialDevelopmentMethod>
  <diggs:initialDevelopmentTime>{0,1}</diggs:initialDevelopmentTime>
  <diggs:maintenanceEvent>{0,unbounded}</diggs:maintenanceEvent>
  <diggs:opening>{0,unbounded}</diggs:opening>
  <diggs:sanitarySealLocation xlink:role="" xlink:actuate="" xlink:show="" xlink:arcrole="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:sanitarySealLocation>
  <diggs:sanitarySealType codeSpace="">{0,1}</diggs:sanitarySealType>
  <diggs:specialTreatment>{0,1}</diggs:specialTreatment>
  <diggs:wellAbandonment>{0,unbounded}</diggs:wellAbandonment>
  <diggs:wellCasing>{0,unbounded}</diggs:wellCasing>
  <diggs:wellDepth howDetermined="" qualifier="" uom="">{0,1}</diggs:wellDepth>
  <diggs:wellFinishType codeSpace="">{0,1}</diggs:wellFinishType>
  <diggs:wellPurpose codeSpace="">{0,1}</diggs:wellPurpose>
</diggs:Well>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element abstract="false" name="Well" substitutionGroup="diggs:AbstractLinearInstallation" type="diggs:WellType"> <annotation> <documentation>A sampling feature that is an installation within a borehole or sounding, used for observing, withdrawing, or injecting fluids. Although wells are discrete sampling features in their own right, they are installed within boreholes or soundings, and must reference the parent borehole or sounding feature within the mandatory samplingFeatureRef property.</documentation> </annotation> </element>
