Element diggs:ParticleSizeDistribution
Namespace http://diggsml.org/schemas/3
Annotations

The particle size distribution property.

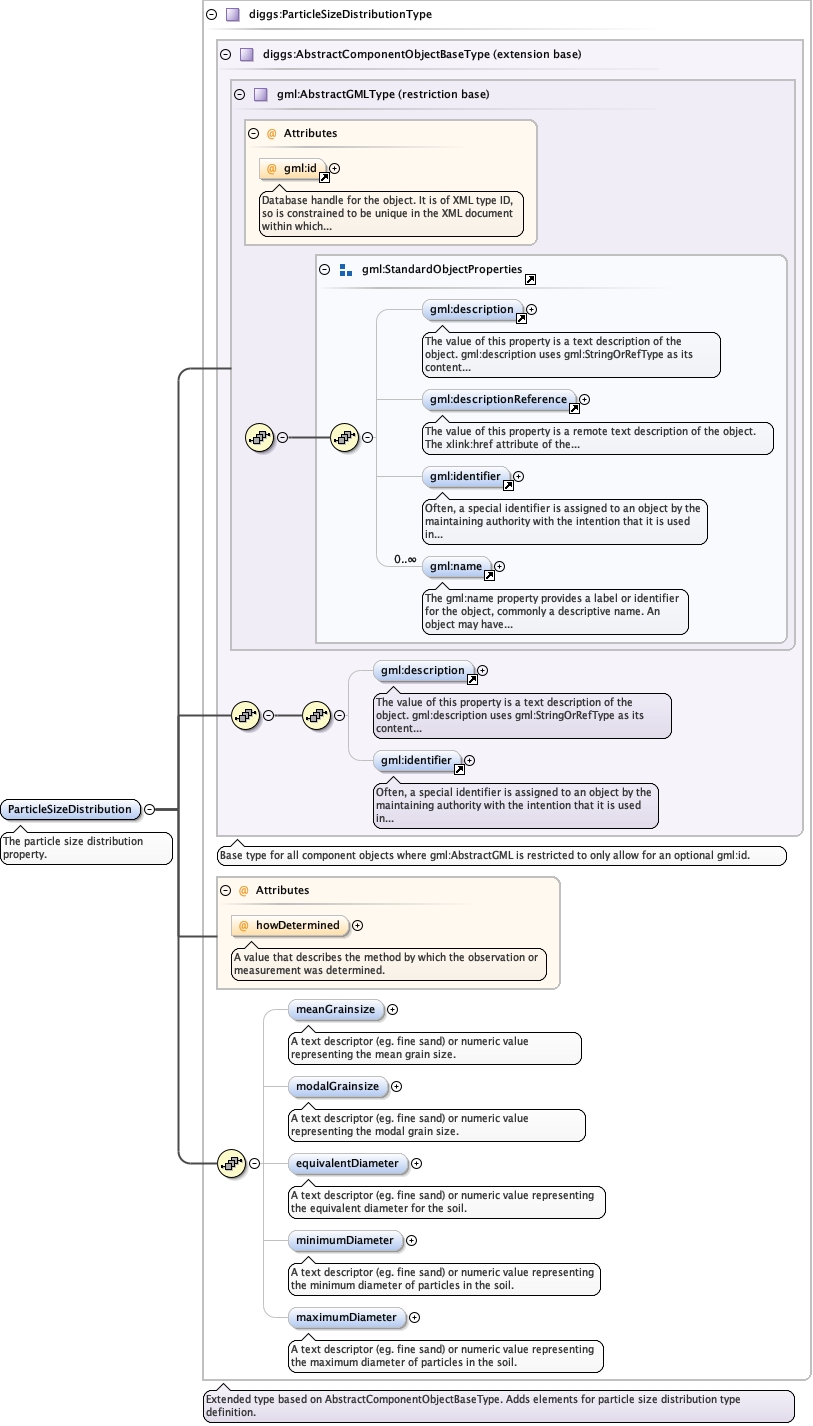

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractComponentObjectBaseType.tmp#AbstractComponentObjectBaseTypeCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_howDeterminedCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_meanGrainsizeCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_modalGrainsizeCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_equivalentDiameterCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_minimumDiameterCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType_maximumDiameterCore_xsd_Complex_Type_diggs_ParticleSizeDistributionType.tmp#ParticleSizeDistributionType
Type diggs:ParticleSizeDistributionType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:equivalentDiameter, diggs:maximumDiameter, diggs:meanGrainsize, diggs:minimumDiameter, diggs:modalGrainsize, gml:description, gml:identifier
Instance

<diggs:ParticleSizeDistribution howDetermined="" gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:meanGrainsize>{0,1}</diggs:meanGrainsize>
  <diggs:modalGrainsize>{0,1}</diggs:modalGrainsize>
  <diggs:equivalentDiameter>{0,1}</diggs:equivalentDiameter>
  <diggs:minimumDiameter>{0,1}</diggs:minimumDiameter>
  <diggs:maximumDiameter>{0,1}</diggs:maximumDiameter>
</diggs:ParticleSizeDistribution>
Attributes
QName Type Use Annotation
gml:id ID optional
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or
measurement was determined.
Source

<element name="ParticleSizeDistribution" type="diggs:ParticleSizeDistributionType">
  <annotation>
    <documentation>The particle size distribution property.</documentation>
  </annotation>
</element>
