Namespace http://diggsml.org/schemas/3
Annotations
The measurement while drilling property.

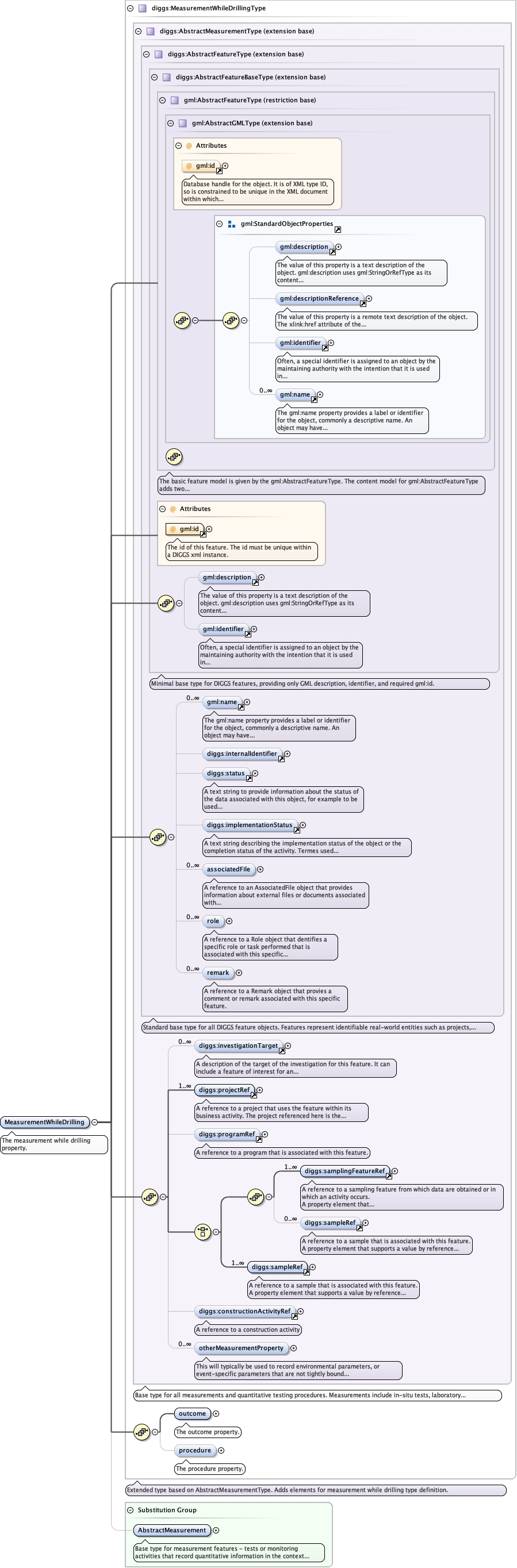

Diagram
Type diggs:MeasurementWhileDrillingType
Type hierarchy
Properties
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:programRef{0,1} , ((
diggs:samplingFeatureRef+ ,
diggs:sampleRef* ) |
diggs:sampleRef+ ) ,
diggs:constructionActivityRef{0,1} ,
diggs:otherMeasurementProperty* ,
diggs:outcome ,
diggs:procedure{0,1}
Children diggs:associatedFile diggs:constructionActivityRef diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:otherMeasurementProperty diggs:outcome diggs:procedure diggs:programRef diggs:projectRef diggs:remark diggs:role diggs:sampleRef diggs:samplingFeatureRef diggs:status gml:description gml:identifier gml:name
Instance
<diggs:MeasurementWhileDrilling gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:samplingFeatureRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:samplingFeatureRef>
<diggs:sampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:sampleRef>
<diggs:sampleRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" percentage= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:sampleRef>
<diggs:constructionActivityRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:constructionActivityRef>
<diggs:otherMeasurementProperty > {0,unbounded} </diggs:otherMeasurementProperty>
<diggs:outcome > {1,1} </diggs:outcome>
<diggs:procedure > {0,1} </diggs:procedure>
</diggs:MeasurementWhileDrilling>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "MeasurementWhileDrilling" substitutionGroup= "diggs:AbstractMeasurement" type= "diggs:MeasurementWhileDrillingType" >
<annotation >
<documentation > The measurement while drilling property. </documentation>
</annotation>
</element>
