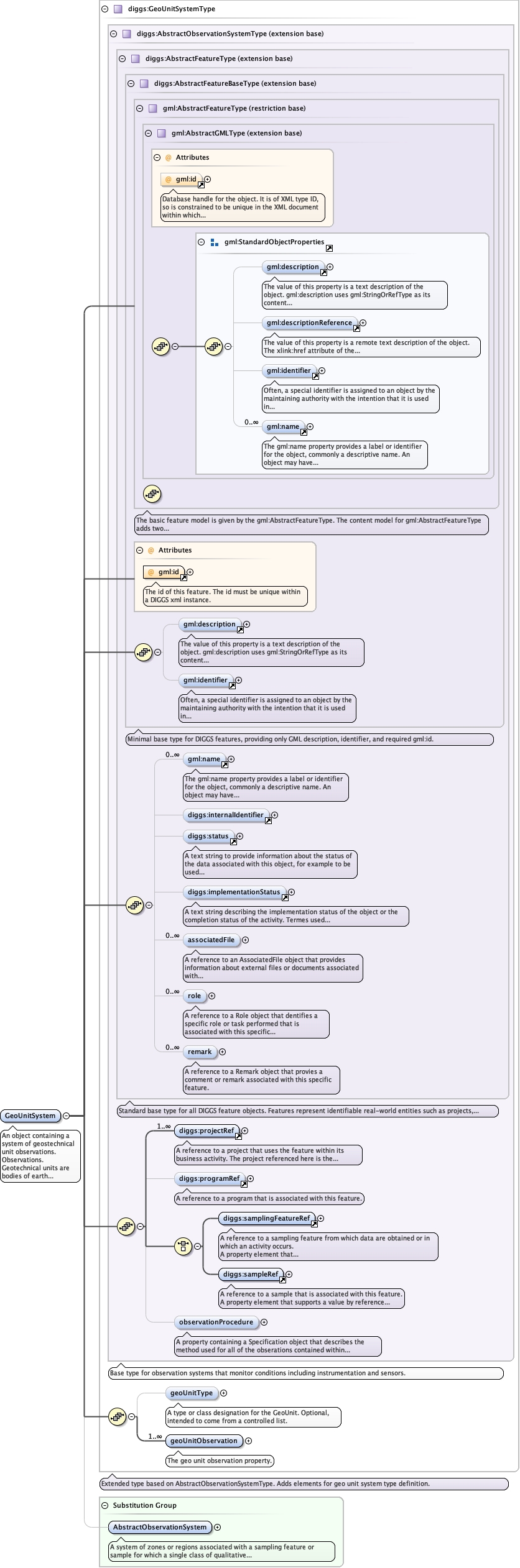

Schema documentation for component diggs:GeoUnitSystem

An object containing a system of geostechnical unit observations. Observations. Geotechnical units are bodies of earth material distinguished by one or more characteristic engineering properties. Observations within a geounit system must not overlap.

<diggs:GeoUnitSystem gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:internalIdentifier codeSpace="">{0,1}</diggs:internalIdentifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:implementationStatus codeSpace="">{0,1}</diggs:implementationStatus>
  <diggs:associatedFile xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:associatedFile>
  <diggs:role>{0,unbounded}</diggs:role>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:projectRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:projectRef>
  <diggs:programRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:programRef>
  <diggs:samplingFeatureRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:samplingFeatureRef>
  <diggs:sampleRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" percentage="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,1}</diggs:sampleRef>
  <diggs:observationProcedure xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:observationProcedure>
  <diggs:geoUnitType codeSpace="">{0,1}</diggs:geoUnitType>
  <diggs:geoUnitObservation xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{1,unbounded}</diggs:geoUnitObservation>
</diggs:GeoUnitSystem>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.

<element name="GeoUnitSystem" substitutionGroup="diggs:AbstractObservationSystem" type="diggs:GeoUnitSystemType"> <annotation> <documentation>An object containing a system of geostechnical unit observations. Observations. Geotechnical units are bodies of earth material distinguished by one or more characteristic engineering properties. Observations within a geounit system must not overlap.</documentation> </annotation> </element>
