Element diggs:Detector
Namespace http://diggsml.org/schemas/3
Annotations

A component of a sensor that measures one specific property (measurand),
optionally along a single geometric axis

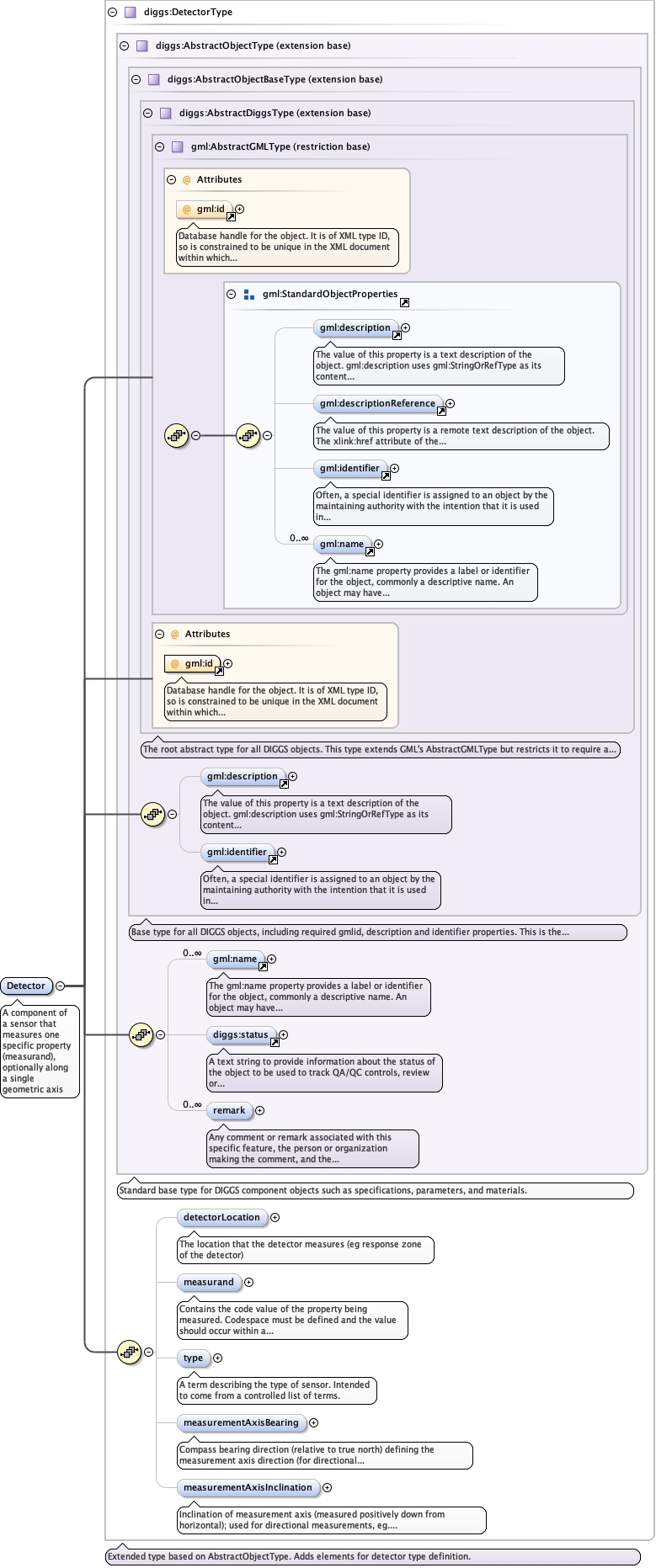

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType_detectorLocationCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType_measurandCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType_typeCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType_measurementAxisBearingCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType_measurementAxisInclinationCore_xsd_Complex_Type_diggs_DetectorType.tmp#DetectorType
Type diggs:DetectorType
Type hierarchy
Properties
content complex
abstract false
Used by
Model
Children diggs:detectorLocation, diggs:measurand, diggs:measurementAxisBearing, diggs:measurementAxisInclination, diggs:remark, diggs:status, diggs:type, gml:description, gml:identifier, gml:name
Instance

<diggs:Detector gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:detectorLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:detectorLocation>
  <diggs:measurand codeSpace="">{0,1}</diggs:measurand>
  <diggs:type codeSpace="">{0,1}</diggs:type>
  <diggs:measurementAxisBearing howDetermined="" qualifier="" uom="">{0,1}</diggs:measurementAxisBearing>
  <diggs:measurementAxisInclination howDetermined="" qualifier="" uom="">{0,1}</diggs:measurementAxisInclination>
</diggs:Detector>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element abstract="false" name="Detector" type="diggs:DetectorType">
  <annotation>
    <documentation>A component of a sensor that measures one specific property (measurand), optionally along a single geometric axis</documentation>
  </annotation>
</element>
