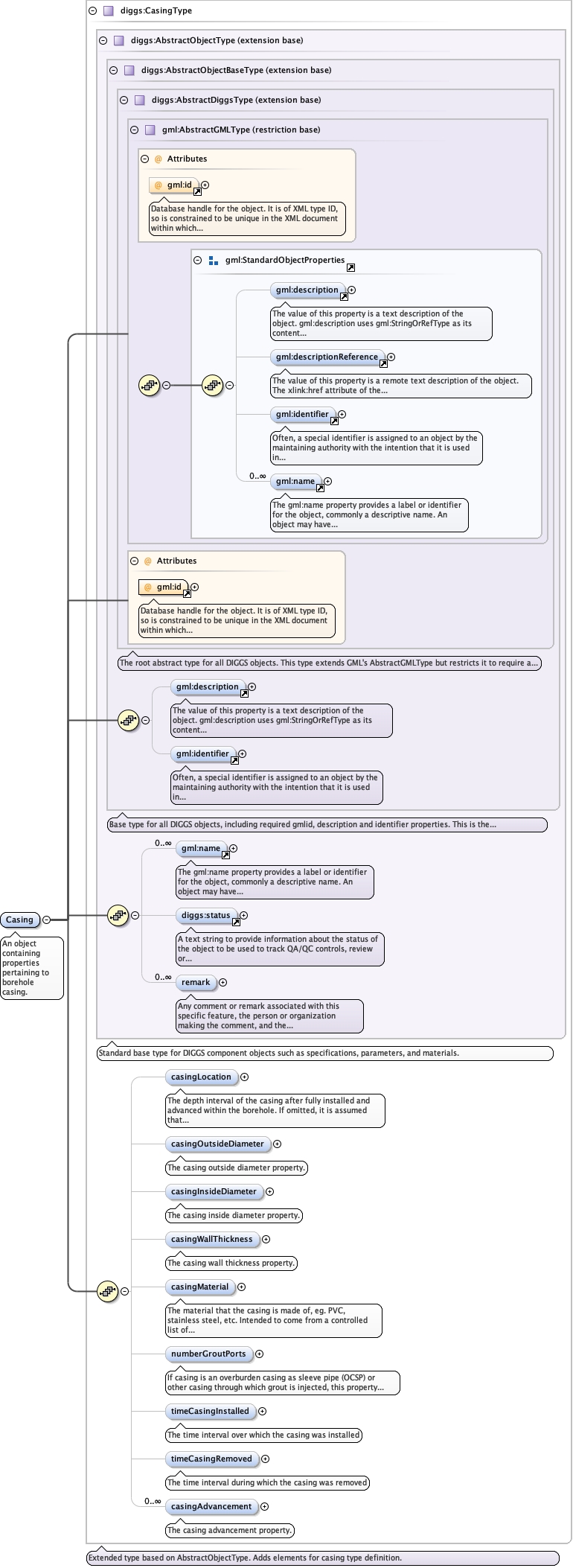

Schema documentation for component diggs:Casing

<diggs:Casing gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:casingLocation xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:casingLocation>
  <diggs:casingOutsideDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:casingOutsideDiameter>
  <diggs:casingInsideDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:casingInsideDiameter>
  <diggs:casingWallThickness howDetermined="" qualifier="" uom="">{0,1}</diggs:casingWallThickness>
  <diggs:casingMaterial codeSpace="">{0,1}</diggs:casingMaterial>
  <diggs:numberGroutPorts>{0,1}</diggs:numberGroutPorts>
  <diggs:timeCasingInstalled gml:id="">{0,1}</diggs:timeCasingInstalled>
  <diggs:timeCasingRemoved gml:id="">{0,1}</diggs:timeCasingRemoved>
  <diggs:casingAdvancement xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:casingAdvancement>
</diggs:Casing>

Database handle for the object. It is of XML type ID, so is constrained to be unique in the XML document within which it occurs. An external identifier for the object in the form of a URI may be constructed using standard XML and XPointer methods. This is done by concatenating the URI for the document, a fragment separator, and the value of the id attribute.
