Element diggs:BackfillLayer
Namespace http://diggsml.org/schemas/3
Annotations

An object that carries properties for a layer of backfill
material.

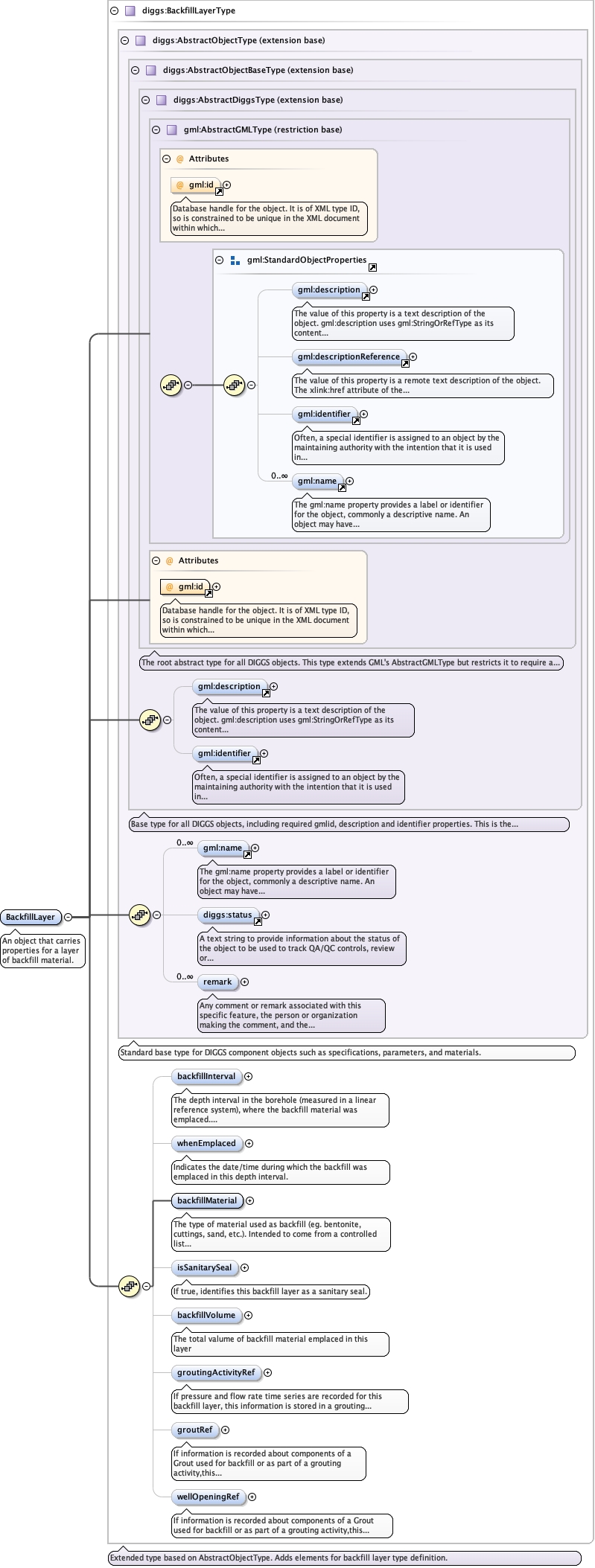

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillIntervalCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_whenEmplacedCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillMaterialCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_isSanitarySealCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_backfillVolumeCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_groutingActivityRefCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_groutRefCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType_wellOpeningRefCore_xsd_Complex_Type_diggs_BackfillLayerType.tmp#BackfillLayerType
Type diggs:BackfillLayerType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:backfillInterval, diggs:backfillMaterial, diggs:backfillVolume, diggs:groutRef, diggs:groutingActivityRef, diggs:isSanitarySeal, diggs:remark, diggs:status, diggs:wellOpeningRef, diggs:whenEmplaced, gml:description, gml:identifier, gml:name
Instance

<diggs:BackfillLayer gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:backfillInterval xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:backfillInterval>
  <diggs:whenEmplaced>{0,1}</diggs:whenEmplaced>
  <diggs:backfillMaterial codeSpace="">{1,1}</diggs:backfillMaterial>
  <diggs:isSanitarySeal>{0,1}</diggs:isSanitarySeal>
  <diggs:backfillVolume howDetermined="" qualifier="" uom="">{0,1}</diggs:backfillVolume>
  <diggs:groutingActivityRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:groutingActivityRef>
  <diggs:groutRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:groutRef>
  <diggs:wellOpeningRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</diggs:wellOpeningRef>
</diggs:BackfillLayer>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="BackfillLayer" type="diggs:BackfillLayerType">
  <annotation>
    <documentation>An object that carries properties for a layer of backfill material.</documentation>
  </annotation>
</element>
