Namespace http://diggsml.org/schemas/3
Annotations
Base type for a sampling feature with a linear geometry (eg. sounding or
borehole).

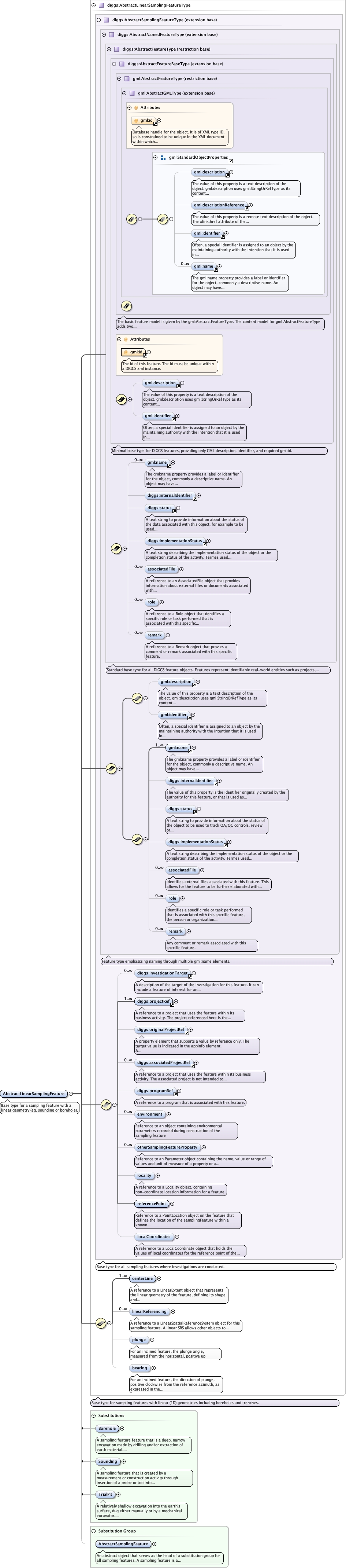

Diagram
Type diggs:AbstractLinearSamplingFeatureType
Type hierarchy
Properties
content
complex
abstract
true
Substitution Group
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name+ ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:investigationTarget* ,
diggs:projectRef+ ,
diggs:originalProjectRef{0,1} ,
diggs:associatedProjectRef* ,
diggs:programRef{0,1} ,
diggs:environment* ,
diggs:otherSamplingFeatureProperty* ,
diggs:locality{0,1} ,
diggs:referencePoint ,
diggs:localCoordinates{0,1} ,
diggs:centerLine+ ,
diggs:linearReferencing* ,
diggs:plunge{0,1} ,
diggs:bearing{0,1}
Children diggs:associatedFile diggs:associatedProjectRef diggs:bearing diggs:centerLine diggs:environment diggs:implementationStatus diggs:internalIdentifier diggs:investigationTarget diggs:linearReferencing diggs:localCoordinates diggs:locality diggs:originalProjectRef diggs:otherSamplingFeatureProperty diggs:plunge diggs:programRef diggs:projectRef diggs:referencePoint diggs:remark diggs:role diggs:status gml:description gml:identifier gml:name
Instance
<diggs:AbstractLinearSamplingFeature gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {1,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:investigationTarget > {0,unbounded} </diggs:investigationTarget>
<diggs:projectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {1,unbounded} </diggs:projectRef>
<diggs:originalProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:originalProjectRef>
<diggs:associatedProjectRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedProjectRef>
<diggs:programRef xlink:actuate= "" xlink:arcrole= "" xlink:href= "" identifierRef= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </diggs:programRef>
<diggs:environment > {0,unbounded} </diggs:environment>
<diggs:otherSamplingFeatureProperty > {0,unbounded} </diggs:otherSamplingFeatureProperty>
<diggs:locality > {0,1} </diggs:locality>
<diggs:referencePoint xlink:role= "" xlink:actuate= "" xlink:show= "" xlink:arcrole= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,1} </diggs:referencePoint>
<diggs:localCoordinates > {0,1} </diggs:localCoordinates>
<diggs:centerLine xlink:actuate= "" xlink:role= "" xlink:arcrole= "" xlink:show= "" xlink:title= "" xlink:href= "" xlink:type= "simple" nilReason= "" owns= "false" > {1,unbounded} </diggs:centerLine>
<diggs:linearReferencing > {0,unbounded} </diggs:linearReferencing>
<diggs:plunge howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:plunge>
<diggs:bearing howDetermined= "" qualifier= "" refAzimuth= "" uom= "" > {0,1} </diggs:bearing>
</diggs:AbstractLinearSamplingFeature>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "AbstractLinearSamplingFeature" type= "diggs:AbstractLinearSamplingFeatureType" substitutionGroup= "diggs:AbstractSamplingFeature" abstract= "true" >
<annotation >
<documentation > Base type for a sampling feature with a linear geometry (eg. sounding or borehole). </documentation>
</annotation>
</element>
