Element diggs:Sedimentation
Namespace http://diggsml.org/schemas/3
Annotations

An object providing properties for each sedimentation interval in a
hydrometer test. This is analogous to the Grading object portion of sieve
analysis.

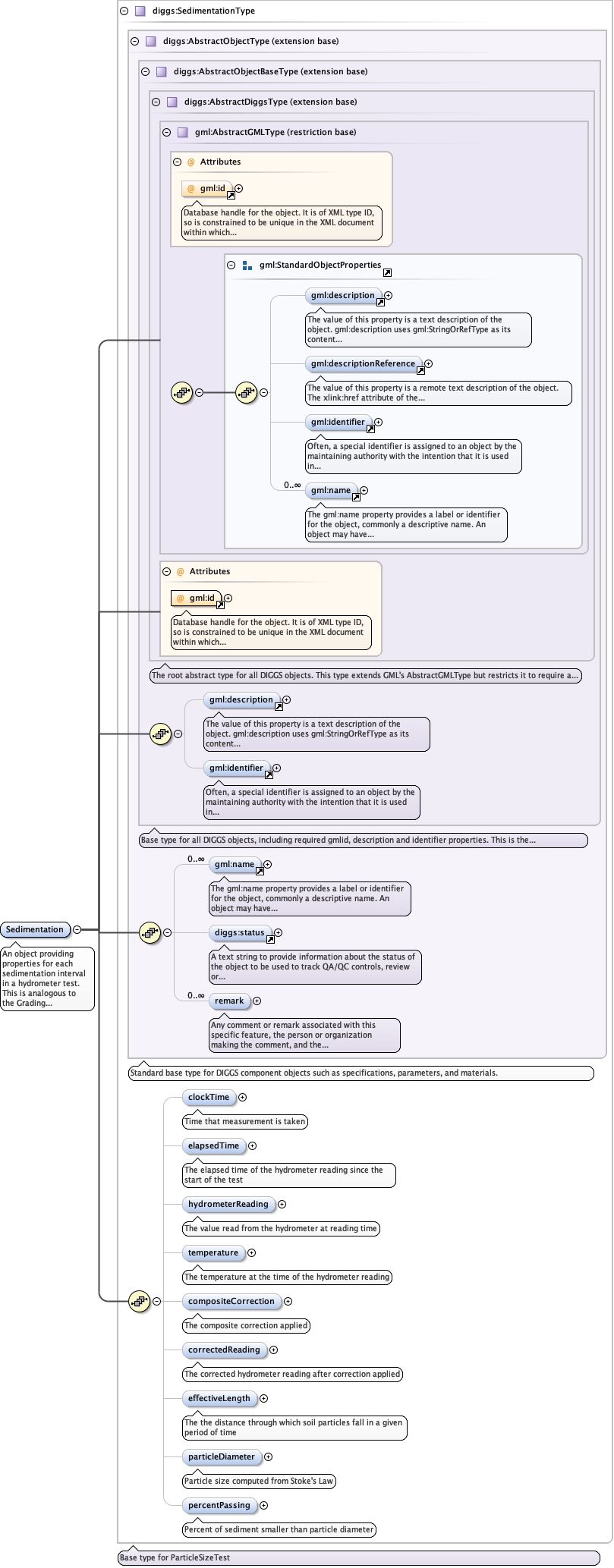

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectBaseType.tmp#AbstractObjectBaseTypegml3_2Profile_diggs_xsd_Element_gml_name.tmp#nameCommon_xsd_Element_diggs_status.tmp#statusAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectType_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectType.tmp#AbstractObjectTypeCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_clockTimeCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_elapsedTimeCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_hydrometerReadingCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_temperatureCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_compositeCorrectionCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_correctedReadingCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_effectiveLengthCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_particleDiameterCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType_percentPassingCoreProcedures_xsd_Complex_Type_diggs_SedimentationType.tmp#SedimentationType
Type diggs:SedimentationType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:clockTime, diggs:compositeCorrection, diggs:correctedReading, diggs:effectiveLength, diggs:elapsedTime, diggs:hydrometerReading, diggs:particleDiameter, diggs:percentPassing, diggs:remark, diggs:status, diggs:temperature, gml:description, gml:identifier, gml:name
Instance

<diggs:Sedimentation gml:id="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:description xlink:actuate="" xlink:arcrole="" xlink:href="" nilReason="" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,1}</gml:description>
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <gml:name codeSpace="">{0,unbounded}</gml:name>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:clockTime calendarEraName="" frame="#ISO-8601" indeterminatePosition="">{0,1}</diggs:clockTime>
  <diggs:elapsedTime howDetermined="" qualifier="" uom="">{0,1}</diggs:elapsedTime>
  <diggs:hydrometerReading howDetermined="" qualifier="" uom="">{0,1}</diggs:hydrometerReading>
  <diggs:temperature howDetermined="" qualifier="" uom="">{0,1}</diggs:temperature>
  <diggs:compositeCorrection howDetermined="" qualifier="" uom="">{0,1}</diggs:compositeCorrection>
  <diggs:correctedReading howDetermined="" qualifier="" uom="">{0,1}</diggs:correctedReading>
  <diggs:effectiveLength howDetermined="" qualifier="" uom="">{0,1}</diggs:effectiveLength>
  <diggs:particleDiameter howDetermined="" qualifier="" uom="">{0,1}</diggs:particleDiameter>
  <diggs:percentPassing howDetermined="" qualifier="" uom="">{0,1}</diggs:percentPassing>
</diggs:Sedimentation>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source

<element name="Sedimentation" type="diggs:SedimentationType">
  <annotation>
    <documentation>An object providing properties for each sedimentation interval in a hydrometer test. This is analogous to the Grading object portion of sieve analysis.</documentation>
  </annotation>
</element>
