Namespace http://diggsml.org/schemas/3
Annotations
An object describing the properties of a laboratory resistivity test
procedure. This test determines the resistivity of a soil as measured in the
laboratory.

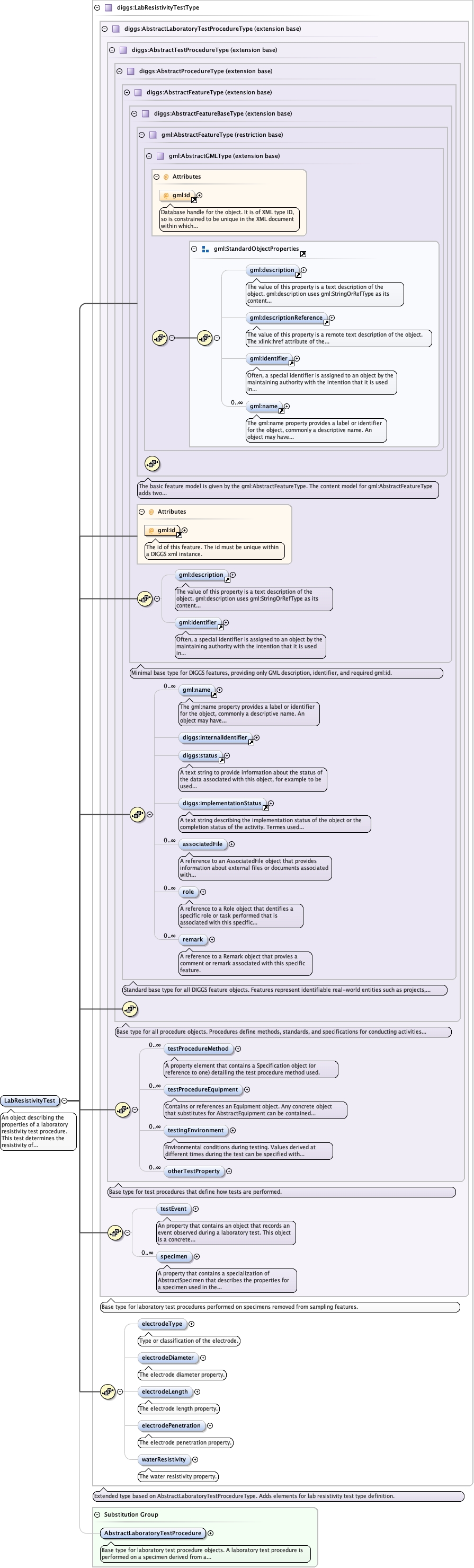

Diagram
Type diggs:LabResistivityTestType
Type hierarchy
Properties
content
complex
abstract
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:electrodeType{0,1} ,
diggs:electrodeDiameter{0,1} ,
diggs:electrodeLength{0,1} ,
diggs:electrodePenetration{0,1} ,
diggs:waterResistivity{0,1}
Children diggs:associatedFile diggs:electrodeDiameter diggs:electrodeLength diggs:electrodePenetration diggs:electrodeType diggs:implementationStatus diggs:internalIdentifier diggs:otherTestProperty diggs:remark diggs:role diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment diggs:waterResistivity gml:description gml:identifier gml:name
Instance
<diggs:LabResistivityTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs:electrodeType codeSpace= "" > {0,1} </diggs:electrodeType>
<diggs:electrodeDiameter howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:electrodeDiameter>
<diggs:electrodeLength howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:electrodeLength>
<diggs:electrodePenetration howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:electrodePenetration>
<diggs:waterResistivity howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:waterResistivity>
</diggs:LabResistivityTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element abstract= "false" name= "LabResistivityTest" substitutionGroup= "diggs:AbstractLaboratoryTestProcedure" type= "diggs:LabResistivityTestType" >
<annotation >
<documentation > An object describing the properties of a laboratory resistivity test procedure. This test determines the resistivity of a soil as measured in the laboratory. </documentation>
</annotation>
</element>
