Namespace http://diggsml.org/schemas/3
Annotations
An object describing the properties of a slake durability test procedure.
The Slake Durability Index predicts the long-term durability of the rock specimens,
to establish weathering and degradation characteristics of each rock type, and to
assess the impact of water on the rock degradation.

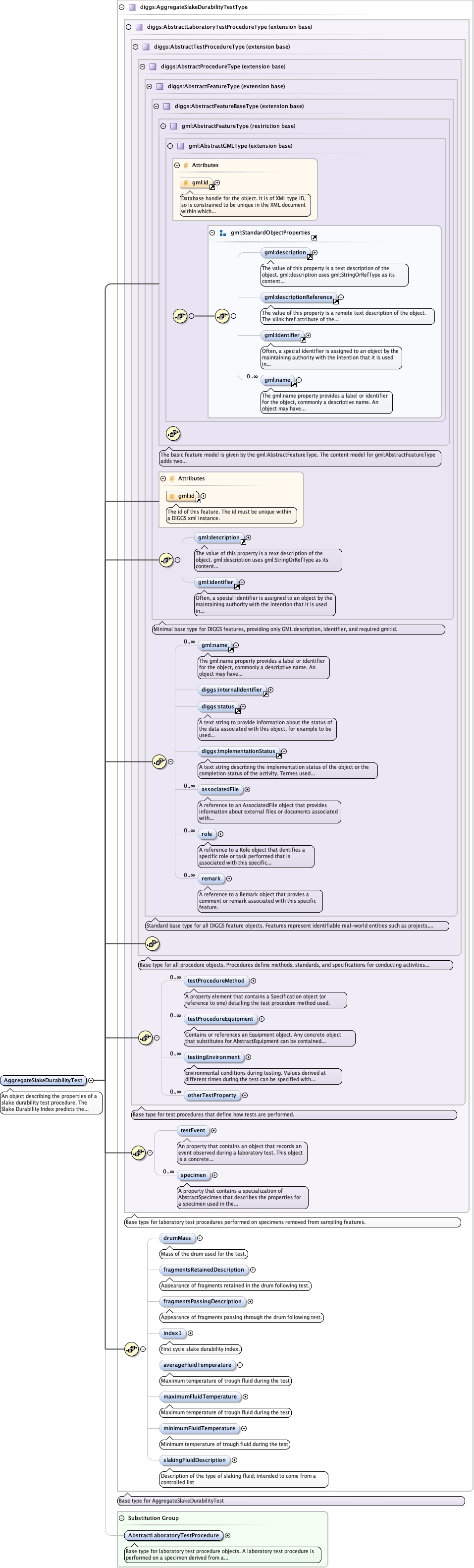

Diagram
Type diggs:AggregateSlakeDurabilityTestType
Type hierarchy
Properties
content
complex
abstract
false
mixed
false
Substitution Group Affiliation
Model
gml:description{0,1} ,
gml:identifier{0,1} ,
gml:name* ,
diggs:internalIdentifier{0,1} ,
diggs:status{0,1} ,
diggs:implementationStatus{0,1} ,
diggs:associatedFile* ,
diggs:role* ,
diggs:remark* ,
diggs:testProcedureMethod* ,
diggs:testProcedureEquipment* ,
diggs:testingEnvironment* ,
diggs:otherTestProperty* ,
diggs:testEvent{0,1} ,
diggs:specimen* ,
diggs:drumMass{0,1} ,
diggs:fragmentsRetainedDescription{0,1} ,
diggs:fragmentsPassingDescription{0,1} ,
diggs:index1{0,1} ,
diggs:averageFluidTemperature{0,1} ,
diggs:maximumFluidTemperature{0,1} ,
diggs:minimumFluidTemperature{0,1} ,
diggs:slakingFluidDescription{0,1}
Children diggs:associatedFile diggs:averageFluidTemperature diggs:drumMass diggs:fragmentsPassingDescription diggs:fragmentsRetainedDescription diggs:implementationStatus diggs:index1 diggs:internalIdentifier diggs:maximumFluidTemperature diggs:minimumFluidTemperature diggs:otherTestProperty diggs:remark diggs:role diggs:slakingFluidDescription diggs:specimen diggs:status diggs:testEvent diggs:testProcedureEquipment diggs:testProcedureMethod diggs:testingEnvironment gml:description gml:identifier gml:name
Instance
<diggs:AggregateSlakeDurabilityTest gml:id= "" xmlns:diggs= "http://diggsml.org/schemas/3" xmlns:gml= "http://www.opengis.net/gml/3.2" >
<gml:description xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,1} </gml:description>
<gml:identifier codeSpace= "" > {0,1} </gml:identifier>
<gml:name codeSpace= "" > {0,unbounded} </gml:name>
<diggs:internalIdentifier codeSpace= "" > {0,1} </diggs:internalIdentifier>
<diggs:status codeSpace= "" > {0,1} </diggs:status>
<diggs:implementationStatus codeSpace= "" > {0,1} </diggs:implementationStatus>
<diggs:associatedFile xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:associatedFile>
<diggs:role > {0,unbounded} </diggs:role>
<diggs:remark > {0,unbounded} </diggs:remark>
<diggs:testProcedureMethod xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureMethod>
<diggs:testProcedureEquipment xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:testProcedureEquipment>
<diggs:testingEnvironment > {0,unbounded} </diggs:testingEnvironment>
<diggs:otherTestProperty > {0,unbounded} </diggs:otherTestProperty>
<diggs:testEvent > {0,1} </diggs:testEvent>
<diggs:specimen xlink:actuate= "" xlink:arcrole= "" xlink:href= "" nilReason= "" owns= "false" xlink:role= "" xlink:show= "" xlink:title= "" xlink:type= "simple" > {0,unbounded} </diggs:specimen>
<diggs:drumMass howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:drumMass>
<diggs:fragmentsRetainedDescription > {0,1} </diggs:fragmentsRetainedDescription>
<diggs:fragmentsPassingDescription > {0,1} </diggs:fragmentsPassingDescription>
<diggs:index1 howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:index1>
<diggs:averageFluidTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:averageFluidTemperature>
<diggs:maximumFluidTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:maximumFluidTemperature>
<diggs:minimumFluidTemperature howDetermined= "" qualifier= "" uom= "" > {0,1} </diggs:minimumFluidTemperature>
<diggs:slakingFluidDescription codeSpace= "" > {0,1} </diggs:slakingFluidDescription>
</diggs:AggregateSlakeDurabilityTest>
Attributes
QName
Type
Use
Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
Source
<element name= "AggregateSlakeDurabilityTest" type= "diggs:AggregateSlakeDurabilityTestType" abstract= "false" substitutionGroup= "diggs:AbstractLaboratoryTestProcedure" >
<annotation >
<documentation > An object describing the properties of a slake durability test procedure. The Slake Durability Index predicts the long-term durability of the rock specimens, to establish weathering and degradation characteristics of each rock type, and to assess the impact of water on the rock degradation. </documentation>
</annotation>
</element>
