Schema documentation for component diggs:Definition

Showing:

Annotations

Diagrams

Instances

Model

Properties

Source

Element diggs:Definition

Namespace

http://diggsml.org/schemas/3

Annotations

The definition property.

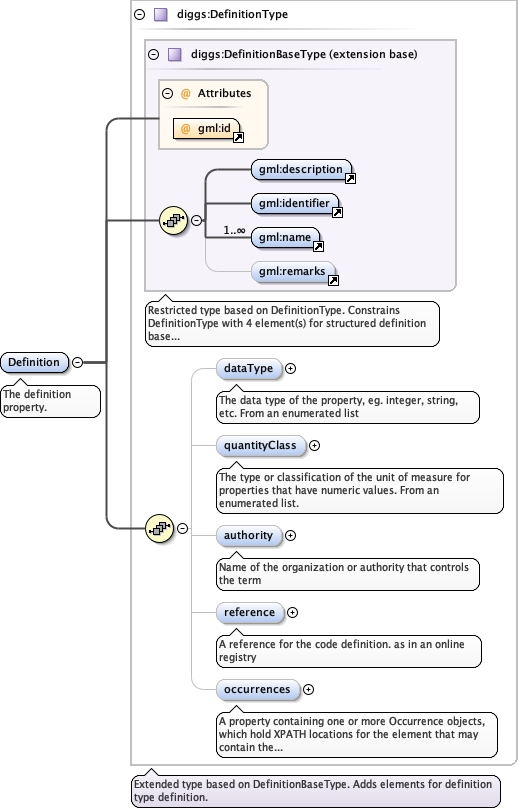

Diagram

Type

diggs:DefinitionType

Type hierarchy

DefinitionType
- diggs:DefinitionBaseType
  - diggs:DefinitionType

Properties

content	complex
abstract	false

Substitution Group Affiliation

http___www.opengis.net_gml_3.2_Definition

Model

description , identifier , name+ , remarks{0,1} , diggs:dataType{0,1} , diggs:quantityClass{0,1} , diggs:authority{0,1} , diggs:reference{0,1} , diggs:occurrences{0,1}

Children

description, diggs:authority, diggs:dataType, diggs:occurrences, diggs:quantityClass, diggs:reference, identifier, name, remarks

Instance

<diggs:Definition xmlns:diggs="http://diggsml.org/schemas/3">
  <description>{1,1}</description>
  <identifier>{1,1}</identifier>
  <name>{1,unbounded}</name>
  <remarks>{0,1}</remarks>
  <diggs:dataType>{0,1}</diggs:dataType>
  <diggs:quantityClass>{0,1}</diggs:quantityClass>
  <diggs:authority>{0,1}</diggs:authority>
  <diggs:reference>{0,1}</diggs:reference>
  <diggs:occurrences>{0,1}</diggs:occurrences>
</diggs:Definition>

Source

<element name="Definition" substitutionGroup="gml:Definition" abstract="false" type="diggs:DefinitionType">
  <annotation>
    <documentation>The definition property.</documentation>
  </annotation>
</element>
