Element diggs:StratigraphyObservation
Namespace http://diggsml.org/schemas/3
Annotations

Stratigraphy obsrvations are descriptions of ordered bodies of rock or
soil, such as formations, biostratigraphic units or aquifers.

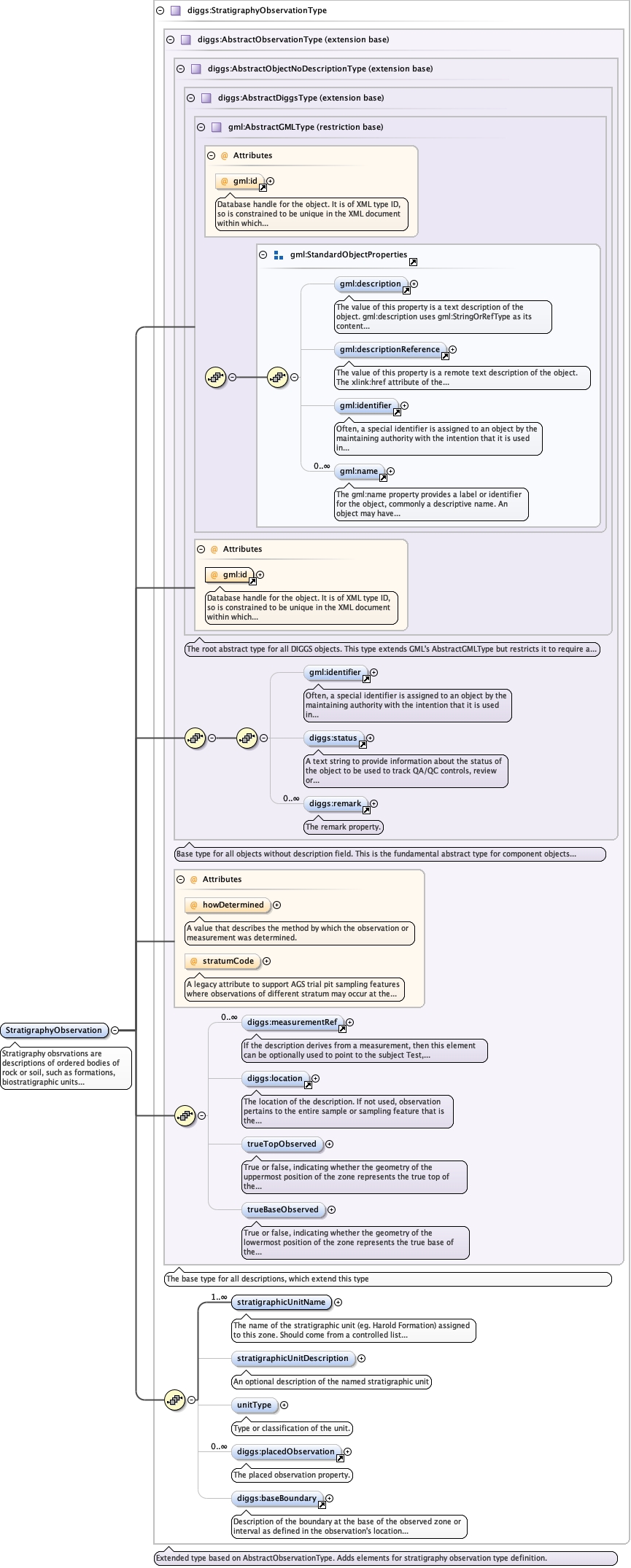

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idgml3_2Profile_diggs_xsd_Element_gml_description.tmp#descriptiongml3_2Profile_diggs_xsd_Element_gml_descriptionReference.tmp#descriptionReferencegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifiergml3_2Profile_diggs_xsd_Element_gml_name.tmp#namegml3_2Profile_diggs_xsd_Element_Group_gml_StandardObjectProperties.tmp#StandardObjectPropertiesgml3_2Profile_diggs_xsd_Complex_Type_gml_AbstractGMLType.tmp#AbstractGMLTypegml3_2Profile_diggs_xsd_Attribute_gml_id.tmp#idAbstractTypes_xsd_Complex_Type_diggs_AbstractDiggsType.tmp#AbstractDiggsTypegml3_2Profile_diggs_xsd_Element_gml_identifier.tmp#identifierCommon_xsd_Element_diggs_status.tmp#statusCommon_xsd_Element_diggs_remark_1.tmp#http___diggsml.org_schemas_3_remarkAbstractTypes_xsd_Complex_Type_diggs_AbstractObjectNoDescriptionType.tmp#AbstractObjectNoDescriptionTypeAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_howDeterminedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_stratumCodeCommon_xsd_Element_diggs_measurementRef.tmp#measurementRefCommon_xsd_Element_diggs_location.tmp#locationAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueTopObservedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationType_trueBaseObservedAbstractTypes_xsd_Complex_Type_diggs_AbstractObservationType.tmp#AbstractObservationTypeCore_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_stratigraphicUnitNameCore_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_stratigraphicUnitDescriptionCore_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType_unitTypeCore_xsd_Element_diggs_placedObservation_1.tmp#placedObservationCommon_xsd_Element_diggs_baseBoundary.tmp#baseBoundaryCore_xsd_Complex_Type_diggs_StratigraphyObservationType.tmp#StratigraphyObservationType
Type diggs:StratigraphyObservationType
Type hierarchy
Properties
content complex
Used by
Model
Children diggs:baseBoundary, diggs:location, diggs:measurementRef, diggs:placedObservation, diggs:remark, diggs:status, diggs:stratigraphicUnitDescription, diggs:stratigraphicUnitName, diggs:trueBaseObserved, diggs:trueTopObserved, diggs:unitType, gml:identifier
Instance

<diggs:StratigraphyObservation howDetermined="" gml:id="" stratumCode="" xmlns:diggs="http://diggsml.org/schemas/3" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:identifier codeSpace="">{0,1}</gml:identifier>
  <diggs:status codeSpace="">{0,1}</diggs:status>
  <diggs:remark>{0,unbounded}</diggs:remark>
  <diggs:measurementRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:measurementRef>
  <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:location>
  <diggs:trueTopObserved>{0,1}</diggs:trueTopObserved>
  <diggs:trueBaseObserved>{0,1}</diggs:trueBaseObserved>
  <diggs:stratigraphicUnitName codeSpace="">{1,unbounded}</diggs:stratigraphicUnitName>
  <diggs:stratigraphicUnitDescription>{0,1}</diggs:stratigraphicUnitDescription>
  <diggs:unitType>{0,1}</diggs:unitType>
  <diggs:placedObservation>{0,unbounded}</diggs:placedObservation>
  <diggs:baseBoundary>{0,1}</diggs:baseBoundary>
</diggs:StratigraphyObservation>
Attributes
QName Type Use Annotation
gml:id ID required
Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.
howDetermined diggs:DescriptorMethodEnumType optional
A value that describes the method by which the observation or
measurement was determined.
stratumCode string optional
A legacy attribute to support AGS trial pit sampling features
where observations of different stratum may occur at the same depth in a
pit. It is a reference letter or number whose sole purpose is to link
the stratum shown on a face sketch of the trial pit to the specific
observation.
Source

<element name="StratigraphyObservation" type="diggs:StratigraphyObservationType">
  <annotation>
    <documentation>Stratigraphy obsrvations are descriptions of ordered bodies of rock or soil, such as formations, biostratigraphic units or aquifers.</documentation>
  </annotation>
</element>
