Schema documentation for component diggs:TimeIntervalOrInstantPropertyType

Showing:

Annotations

Diagrams

Model

Source

Used by

Complex Type diggs:TimeIntervalOrInstantPropertyType

Namespace

http://diggsml.org/schemas/3

Annotations

Property type for containing either a TimeInterval or a gml:TimeInstant object

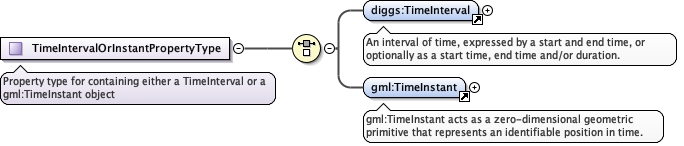

Diagram

Used by

Elements

diggs:GeophysicalFieldSurveyType/diggs:resultTime, diggs:GeophysicalFieldSurveyType/diggs:samplingTime, diggs:GeophysicalFieldSurveyType/diggs:validTime, diggs:MaterialTestType/diggs:resultTime, diggs:MaterialTestType/diggs:samplingTime, diggs:MaterialTestType/diggs:validTime, diggs:MonitorType/diggs:samplingTime, diggs:TestType/diggs:resultTime, diggs:TestType/diggs:samplingTime, diggs:TestType/diggs:validTime

Model

diggs:TimeInterval | gml:TimeInstant

Children

diggs:TimeInterval, gml:TimeInstant

Source

<complexType name="TimeIntervalOrInstantPropertyType">
  <annotation>
    <documentation>Property type for containing either a TimeInterval or a gml:TimeInstant object</documentation>
  </annotation>
  <choice>
    <element minOccurs="1" ref="diggs:TimeInterval"/>
    <element ref="gml:TimeInstant"/>
  </choice>
</complexType>
