Element diggs:properties
Namespace http://diggsml.org/schemas/2.6
Annotations

A property that contains a sequence of Property objects defining the
results of a test or monitoring activity.

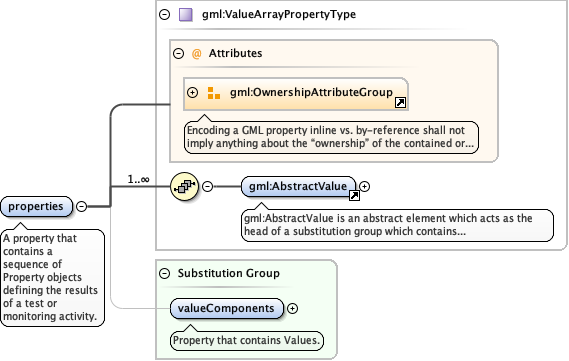

Diagram
Diagramgml3_2Profile_diggs_xsd_Attribute_Group_gml_OwnershipAttributeGroup.tmp#OwnershipAttributeGroupgml3_2Profile_diggs_xsd_Element_gml_AbstractValue.tmp#AbstractValuegml3_2Profile_diggs_xsd_Complex_Type_gml_ValueArrayPropertyType.tmp#ValueArrayPropertyTypegml3_2Profile_diggs_xsd_Element_gml_valueComponents.tmp#valueComponents
Type gml:ValueArrayPropertyType
Properties
content complex
Substitution Group Affiliation
Used by
Model
Children gml:AbstractValue
Instance

<diggs:properties owns="false" xmlns:diggs="http://diggsml.org/schemas/2.6" xmlns:gml="http://www.opengis.net/gml/3.2">
  <gml:AbstractValue>{1,1}</gml:AbstractValue>
</diggs:properties>
Attributes
QName Type Default Use
owns boolean false optional
Source

<element name="properties" substitutionGroup="gml:valueComponents" type="gml:ValueArrayPropertyType">
  <annotation>
    <documentation>A property that contains a sequence of Property objects defining the results of a test or monitoring activity.</documentation>
  </annotation>
</element>
