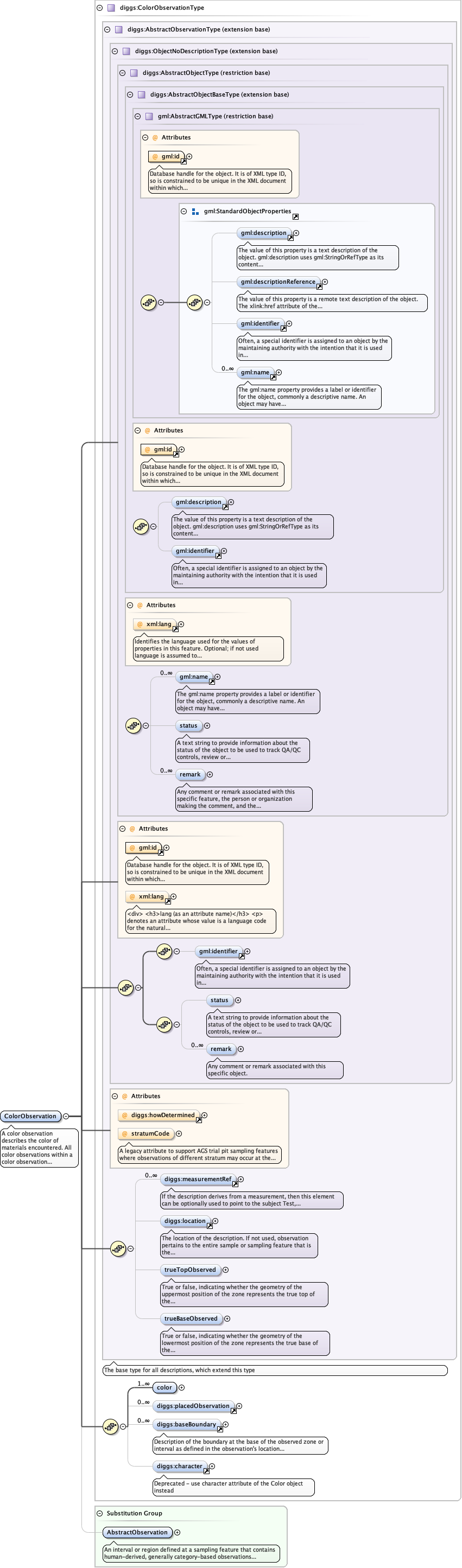

Schema documentation for component diggs:ColorObservation

A color observation describes the color of materials encountered. All color observations within a color observation system must not overlap, although multiple colors can be described within a single zone.

<diggs:ColorObservation diggs:howDetermined="" gml:id="" xml:lang="" stratumCode="" xmlns:diggs="http://diggsml.org/schemas/2.6" xmlns:gml="http://www.opengis.net/gml/3.2"> <gml:identifier codeSpace="">{0,1}</gml:identifier> <diggs:status codeSpace="">{0,1}</diggs:status> <diggs:remark>{0,unbounded}</diggs:remark> <diggs:measurementRef xlink:actuate="" xlink:arcrole="" xlink:href="" identifierRef="" nilReason="" owns="false" xlink:role="" xlink:show="" xlink:title="" xlink:type="simple">{0,unbounded}</diggs:measurementRef> <diggs:location xlink:actuate="" xlink:role="" xlink:arcrole="" xlink:show="" xlink:title="" xlink:href="" xlink:type="simple" nilReason="" owns="false">{0,1}</diggs:location> <diggs:trueTopObserved>{0,1}</diggs:trueTopObserved> <diggs:trueBaseObserved>{0,1}</diggs:trueBaseObserved> <diggs:color character="" origin="">{1,unbounded}</diggs:color> <diggs:placedObservation>{0,unbounded}</diggs:placedObservation> <diggs:baseBoundary>{0,unbounded}</diggs:baseBoundary> <diggs:character>{0,1}</diggs:character> </diggs:ColorObservation>

QName

Type

Use

Annotation

diggs:howDetermined

diggs:DescriptorMethodEnumType

optional

gml:id

required

Database handle for the object. It is of XML type ID, so is constrained to be
unique in the XML document within which it occurs. An external identifier for the object in
the form of a URI may be constructed using standard XML and XPointer methods. This is done
by concatenating the URI for the document, a fragment separator, and the value of the id
attribute.

stratumCode

string

optional

A legacy attribute to support AGS trial pit sampling features where observations of different stratum may occur at the same depth in a pit. It is a reference letter or number whose sole purpose is to link the stratum shown on a face sketch of the trial pit to the specific observation.

xml:lang

union of(xs:language, restriction of xs:string)

optional

<div>
  <h3>lang (as an attribute name)</h3>
  <p>denotes an attribute whose value is a language code for the natural language of the content of any element; its value is inherited. This name is reserved by virtue of its definition in the XML specification.</p>
</div>
<div>
  <h4>Notes</h4>
  <p>Attempting to install the relevant ISO 2- and 3-letter codes as the enumerated possible values is probably never going to be a realistic possibility.</p>
  <p>See BCP 47 at
    <a href="http://www.rfc-editor.org/rfc/bcp/bcp47.txt">http://www.rfc-editor.org/rfc/bcp/bcp47.txt</a>and the IANA language subtag registry at
    <a href="http://www.iana.org/assignments/language-subtag-registry">http://www.iana.org/assignments/language-subtag-registry</a>for further information.</p>
  <p>The union allows for the 'un-declaration' of xml:lang with the empty string.</p>
</div>

<element name="ColorObservation" substitutionGroup="diggs:AbstractObservation" type="diggs:ColorObservationType"> <annotation> <documentation>A color observation describes the color of materials encountered. All color observations within a color observation system must not overlap, although multiple colors can be described within a single zone.</documentation> </annotation> </element>
