Element eml:DataAssuranceRecord
Namespace http://www.energistics.org/energyml/data/commonv2

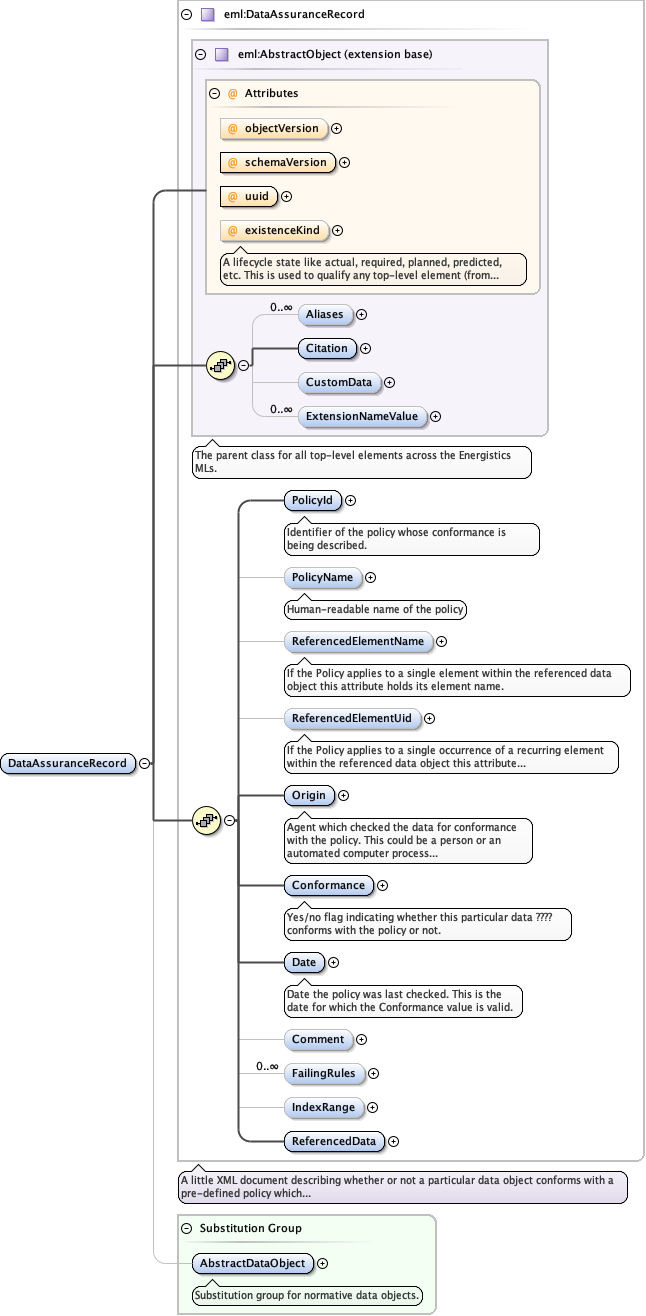

Diagram
DiagramAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_objectVersionAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_schemaVersionAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_uuidAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_existenceKindAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_AliasesAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_CitationAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_CustomDataAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObject_ExtensionNameValueAbstract_xsd_Complex_Type_eml_AbstractObject.tmp#http___www.energistics.org_energyml_data_commonv2_AbstractObjectDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_PolicyIdDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_PolicyNameDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_ReferencedElementNameDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_ReferencedElementUidDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_OriginDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_ConformanceDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_DateDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_CommentDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_FailingRulesDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_IndexRangeDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecord_ReferencedDataDataAssurance_xsd_Complex_Type_eml_DataAssuranceRecord.tmp#http___www.energistics.org_energyml_data_commonv2_DataAssuranceRecordAbstract_xsd_Element_eml_AbstractDataObject.tmp#AbstractDataObject
Type eml:DataAssuranceRecord
Type hierarchy
Properties
content complex
Substitution Group Affiliation
Model
Children eml:Aliases, eml:Citation, eml:Comment, eml:Conformance, eml:CustomData, eml:Date, eml:ExtensionNameValue, eml:FailingRules, eml:IndexRange, eml:Origin, eml:PolicyId, eml:PolicyName, eml:ReferencedData, eml:ReferencedElementName, eml:ReferencedElementUid
Instance

<eml:DataAssuranceRecord existenceKind="" objectVersion="" schemaVersion="" uuid="" xmlns:eml="http://www.energistics.org/energyml/data/commonv2">
  <eml:Aliases authority="">{0,unbounded}</eml:Aliases>
  <eml:Citation>{1,1}</eml:Citation>
  <eml:CustomData>{0,1}</eml:CustomData>
  <eml:ExtensionNameValue>{0,unbounded}</eml:ExtensionNameValue>
  <eml:PolicyId>{1,1}</eml:PolicyId>
  <eml:PolicyName>{0,1}</eml:PolicyName>
  <eml:ReferencedElementName>{0,1}</eml:ReferencedElementName>
  <eml:ReferencedElementUid>{0,1}</eml:ReferencedElementUid>
  <eml:Origin>{1,1}</eml:Origin>
  <eml:Conformance>{1,1}</eml:Conformance>
  <eml:Date>{1,1}</eml:Date>
  <eml:Comment>{0,1}</eml:Comment>
  <eml:FailingRules>{0,unbounded}</eml:FailingRules>
  <eml:IndexRange>{0,1}</eml:IndexRange>
  <eml:ReferencedData>{1,1}</eml:ReferencedData>
</eml:DataAssuranceRecord>
Attributes
QName Type Use Annotation
existenceKind eml:ExistenceKind optional
A lifecycle state like actual, required, planned, predicted, etc. This is used to qualify any top-level element (from Epicentre 2.1).
objectVersion eml:String64 optional
schemaVersion eml:String64 required
uuid eml:UuidString required
Source

<xs:element name="DataAssuranceRecord" type="eml:DataAssuranceRecord" substitutionGroup="eml:AbstractDataObject"/>
